Boscam TS333 5.8G 10mW AV Wireless Transmitter

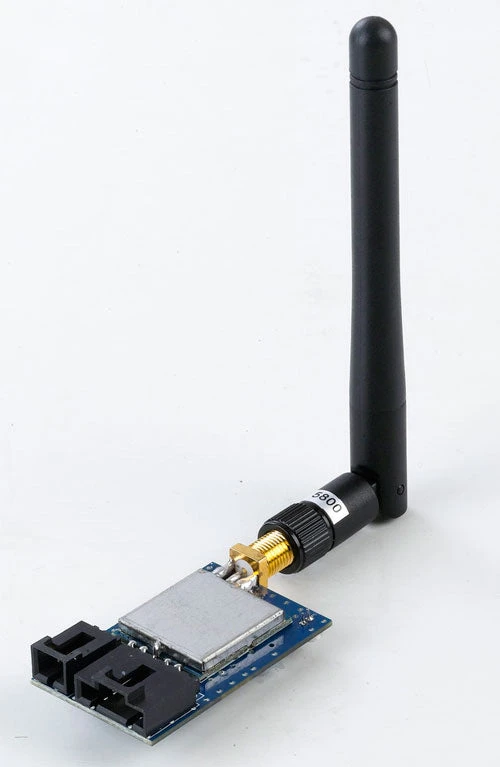

Product: Boscam 5.8GHz 10mW AV Wireless Video Transmitter

Transmitter Frequency:

• Amateur Radio Band, 8 channels
• Channel 1: 5725 MHz
• Channel 2: 5745 MHz
• Channel 3: 5765 MHz
• Channel 4: 5785 MHz
• Channel 5: 5805 MHz
• Channel 6: 5825 MHz
• Channel 7: 5845 MHz
• Channel 8: 5865 MHz

Note: The channel listing on the back of the print manual in the package does not list the frequencies correctly relative to the channels. The channels are as listed here on this web listing.

Compatibility: This product is NOT frequency-compatible with FatShark, ImmersionRC, Airwave-based equipment. It also does not work with some other receivers that use different frequency allocations that work with transmitters that are not legal for import or use in the United States.

Specifications:

• Transmitter Frequency: 5725-5865MHz; 8CH
• Transmitting Power: 10mW/10dBm
• Transmitting Distance: >150m (open area)
• Frequency Control: Built-in frequency and phase lock loop
• AV Input: Analog AV signal input
• ANT Connector: SMA (inside the needle)
• Power Supply: 6.5-12 volts
• Current Supply: 120mA
• Size: 42268mm
• Net/Gross Weight: 28g
