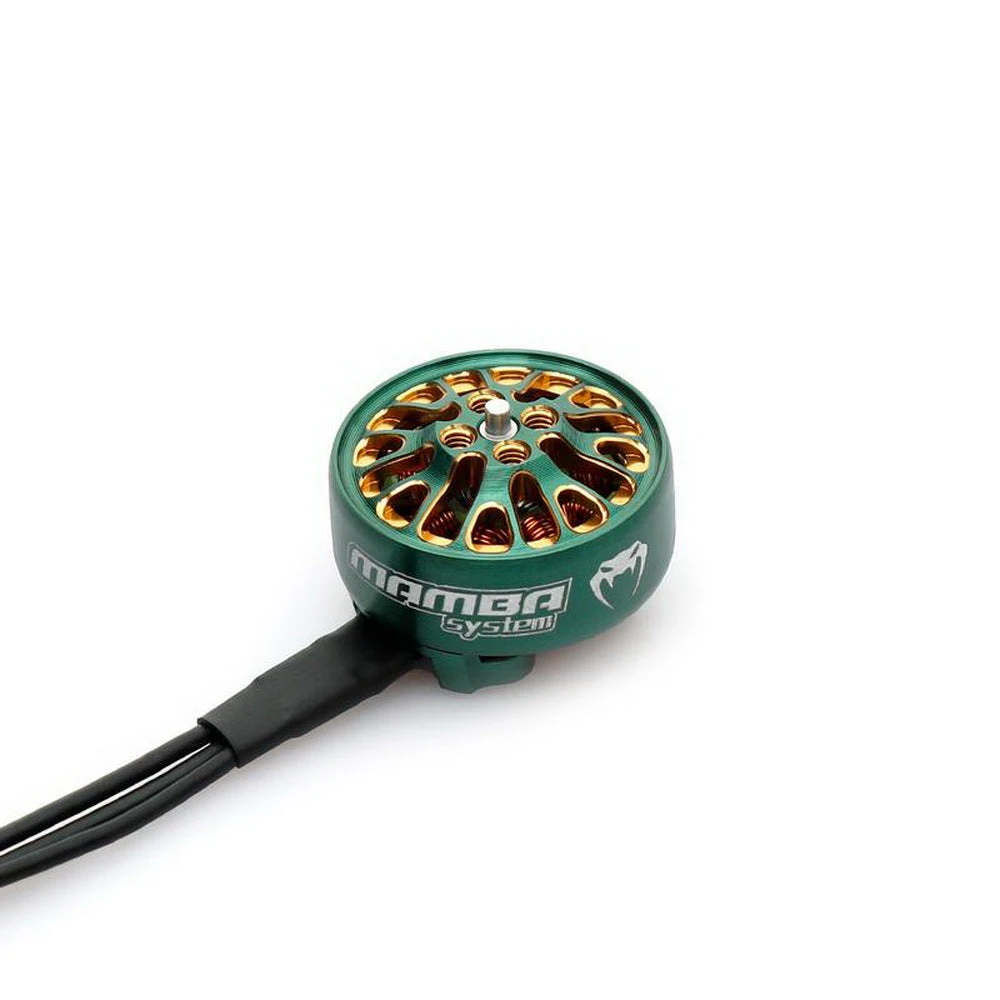

DIATONE MAMBA TOKA 1404 3000KV Or 4000KV Racing Motor Green

DIATONE MAMBA TOKA 1404 3000KV or 4000KV Racing Motor Green

Specification:

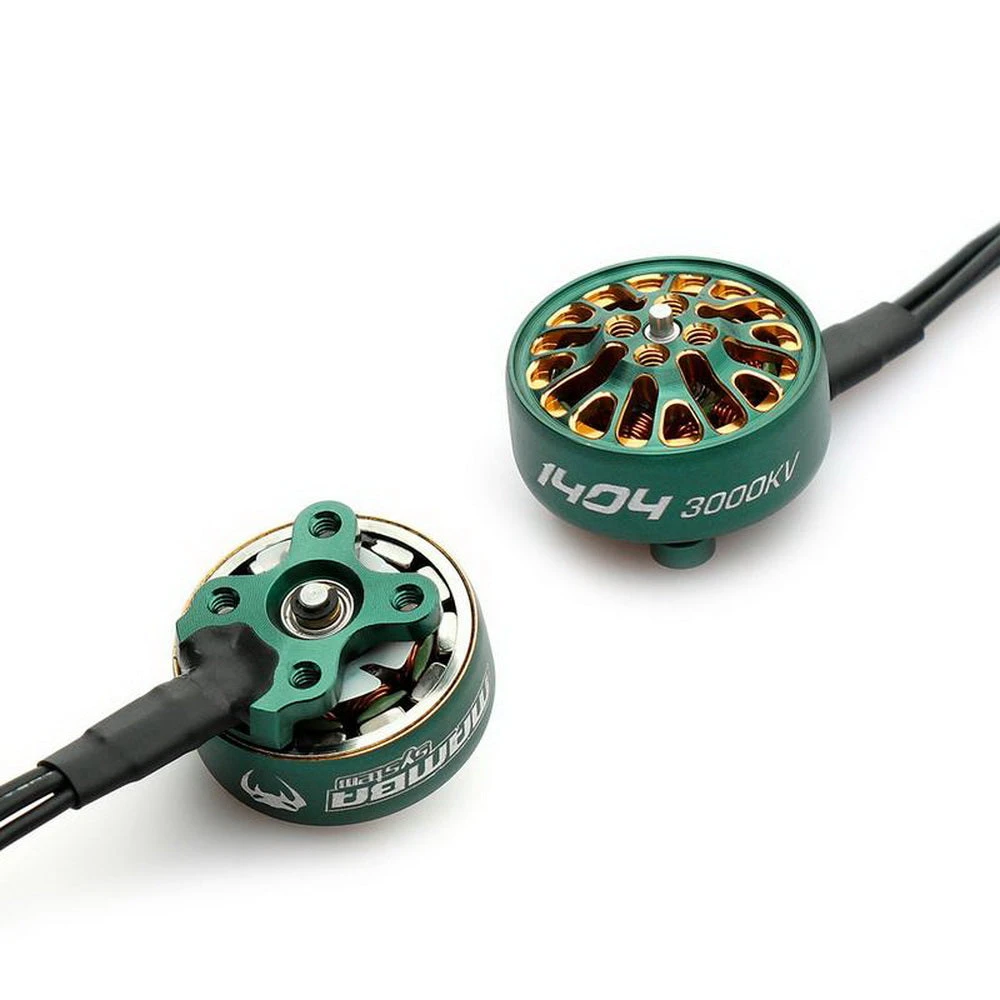

MAMBA TOKA 1404 3000KV Racing Motor Green

Overall Dimension:Φ20.5×15mm
prop mounting shaft diameter:1.5mm
Installation hole position:12×12mm，M2
Prop: 2.5inch~4inch(Toothpick)
Bearing： 5*2*2.5
Shaft Diameter:2mm
Lead Wire Size：24AWG×150mm
slots/poles:9N12P
Magnet Wire: 240℃ Enameled Wire

Stator Diamter：14mm
Stator Height:4mm
Rated Voltage:3S~6S (12.6V~25.2V)
Peak Current: 11.95A
ldle Current：10V/0.3~1.0A
Maximum Power: 286.8W
Internal Resistance：310Ω

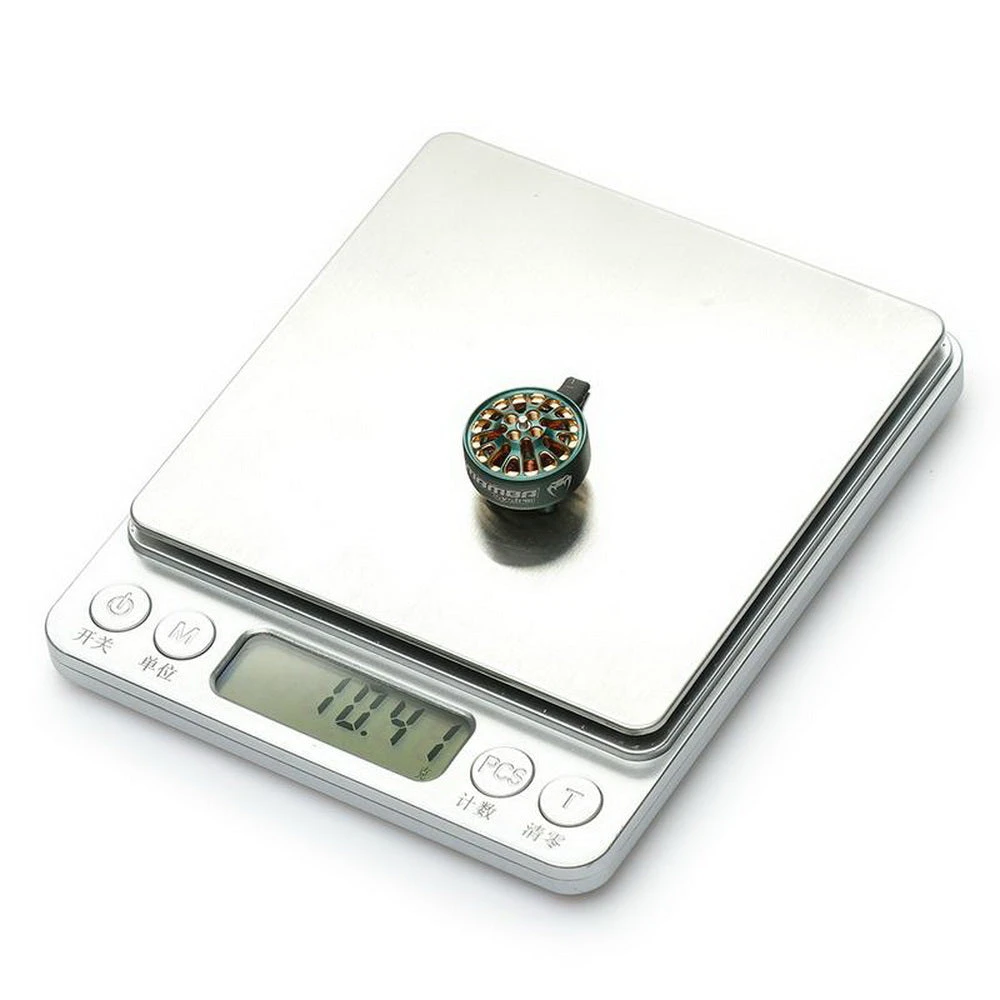

Weight: 10.5g

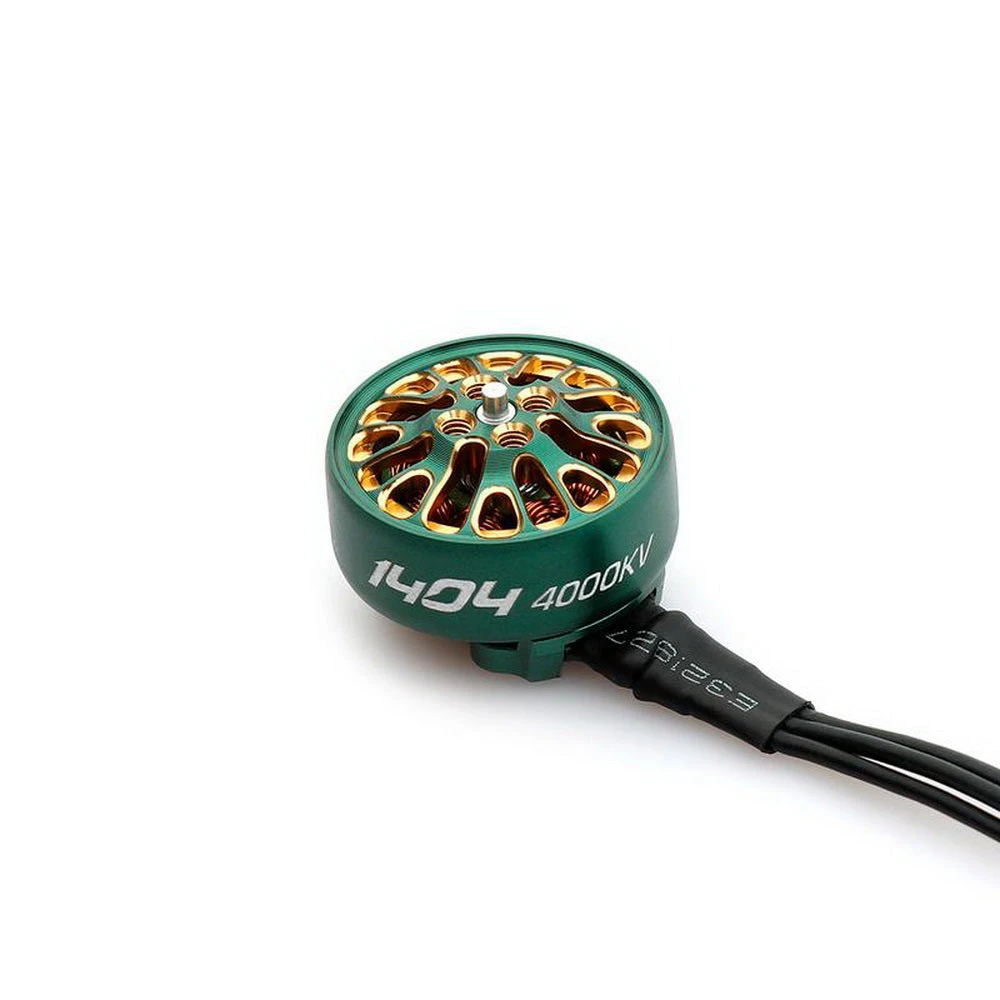

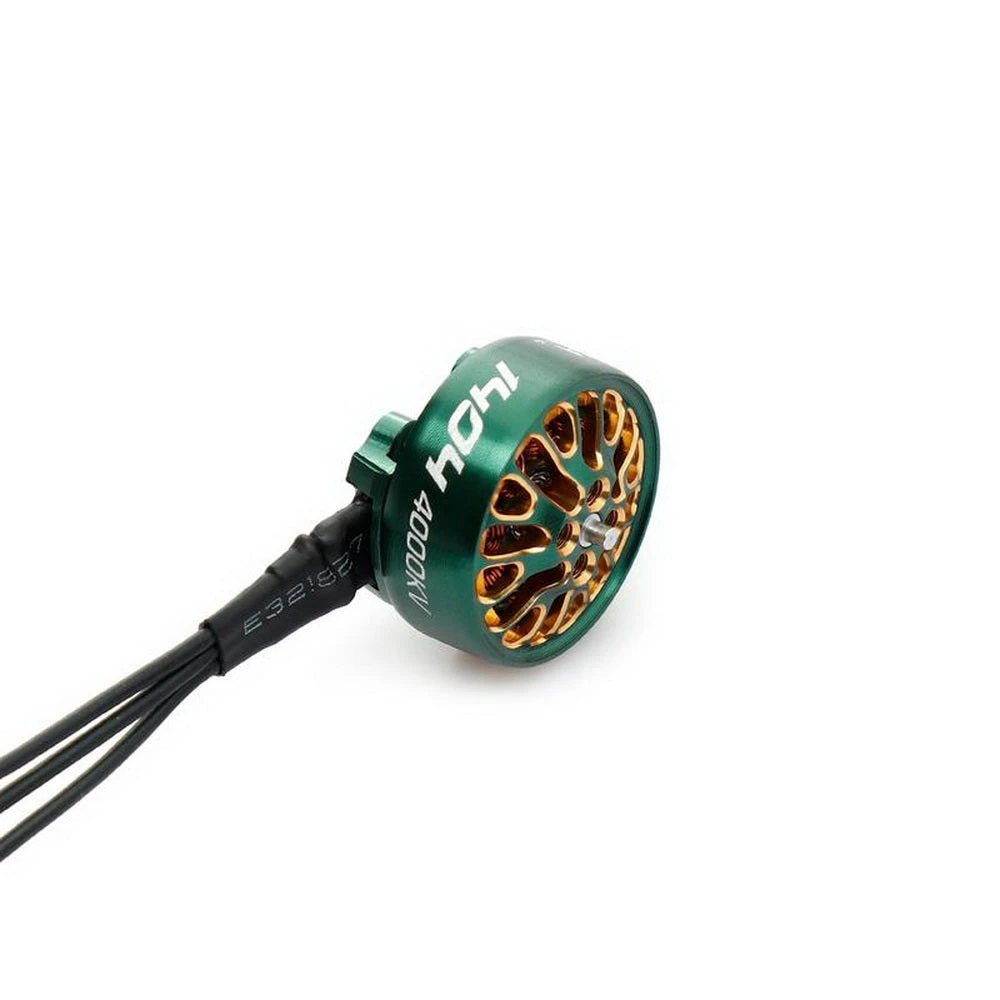

MAMBA TOKA 1404 4000KV Racing Motor Green

Overall Dimension:Φ20.5×15mm
prop mounting shaft diameter:1.5mm
Installation hole position:12×12mm，M2
Prop: 2.5inch~4inch(Toothpick)
Bearing： 5*2*2.5
Shaft Diameter:2mm
Lead Wire Size：24AWG×150mm
slots/poles:9N12P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：14mm
Stator Height:4mm
Rated Voltage:3S~4S (12.6V~16.8V)
Peak Current: 13.48A
ldle Current：10V/0.5~1.2A
Maximum Power: 215.6W
Internal Resistance：175Ω

Weight: 10.5g
