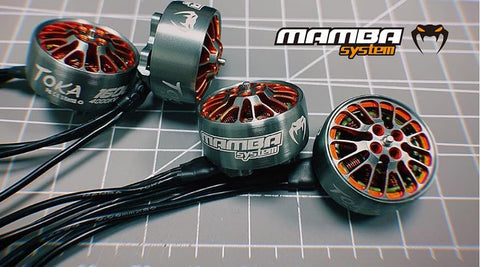

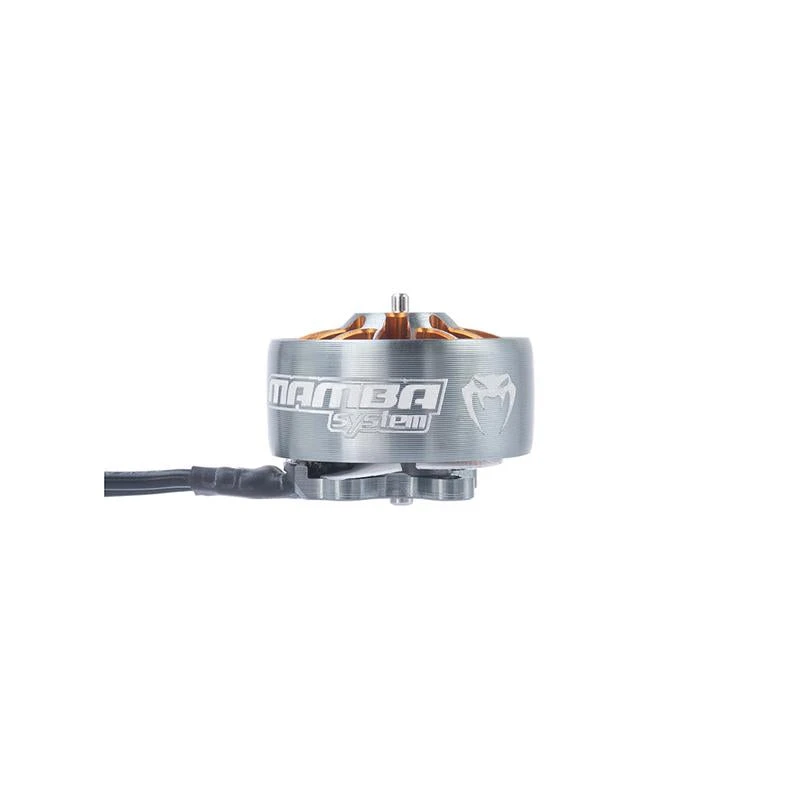

DIATONE MAMBA TOKA 1606 2700kv, 3100kv, 3750kv Or 4300kv Brushless Motor

DIATONE MAMBA TOKA 1606 2700kv, 3100kv, 3750kv or 4300kv Brushless Motor

Specification：

MAMBA TOKA 1606 3100kv Motor

Overall Dimension:Φ22.5×11.6mm
prop mounting shaft diameter:2.0mm
Installation hole position:12×12mm，M2
Prop: 3inch~4inch
Bearing： 5*2*2.5
Shaft Diameter:2.0mm
Lead Wire Size：24AWG ×150mm
Configuration:9N12P
Magnet Wire: Class H，240℃ Enameled Wire
Stator Diamter：16mm
Stator Height:6mm
Rated Voltage: 4~6S (16.8V~25.2V)

Peak Current: 21.28A
ladle Current：10V/0.9A
Maximum Power: 512W
Internal Resistance：110Ω

MAMBA TOKA 1606 4300KV MOTOR

Overall Dimension:Φ22.5×11.6mm
prop mounting shaft diameter:2.0mm
Installation hole position:12×12mm，M2
Prop: 3inch~4inch
Bearing： 5*2*2.5
Shaft Diameter:2.0mm
Lead Wire Size：24AWG ×150mm
Configuration:9N12P
Magnet Wire: Class H，240℃ Enameled Wire
Stator Diamter：16mm
Stator Height:6mm
Rated Voltage: 3~4S (12.6V~16.8V)
Peak Current: 23.62A
ladle Current:8V/1.4A
Maximum Power: 378W
Internal Resistance：90Ω

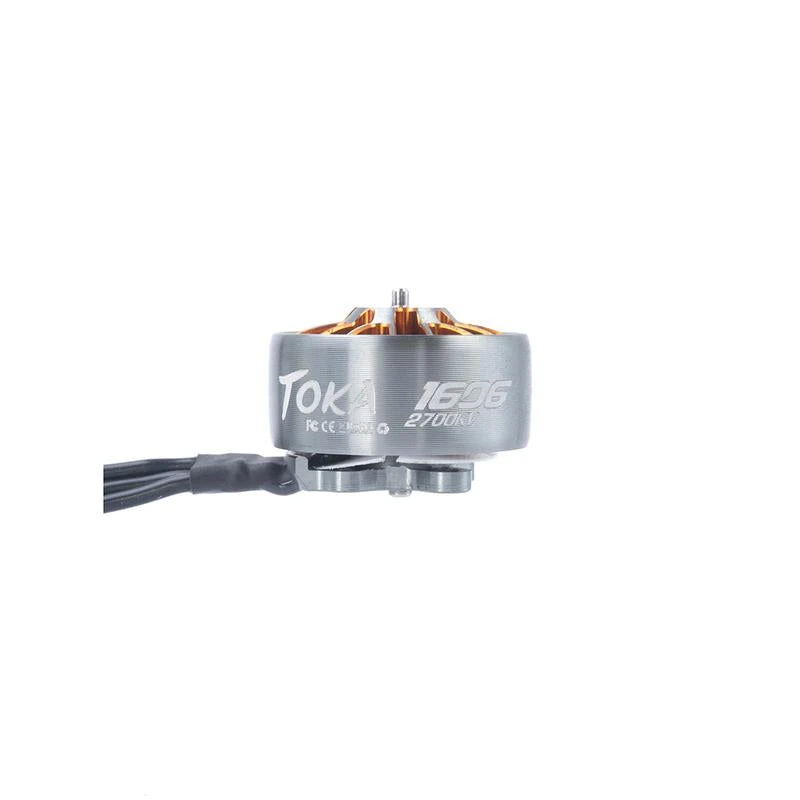

MAMBA TOKA 1606 2700KV MOTOR

Overall Dimension:Φ22.2×15mm
Shaft Diameter:1.5mm
Installation hole position:12×12mm，M2
Prop: 3inch~4inch
Bearing： 5*2*2.5
Diameter:2mm
Lead Wire Size：24AWG ×150mm
Configuration:9N12P
Magnet Wire: Class H，220℃ Enameled Wire
Stator Diamter：16mm
Stator Height:6mm
Rated Voltage: 3~6S (12.6V~25.2V)
Peak Current: 17.6A
ldle Current：10V/0.5A
Maximum Power: 409W
Internal Resistance：164Ω



MAMBA TOKA 1606 3750KV MOTOR

Overall Dimension: Φ22.2×15mm
Shaft Diameter:1.5mm
Installation hole position:12×12mm，M2
Prop: 3inch~4inch
Bearing： 5*2*2.5
Diameter:2mm
Lead Wire Size：24AWG ×150mm
Configuration:9N12P
Magnet Wire: Class H，220℃ Enameled Wire
Stator Diamter：16mm
Stator Height:6mm
Rated Voltage: 3~4S (12.6V~16.8V)
Peak Current: 21.1A
ladle Current：9v/0.8A
Maximum Power: 338W
Internal Resistance：114Ω
