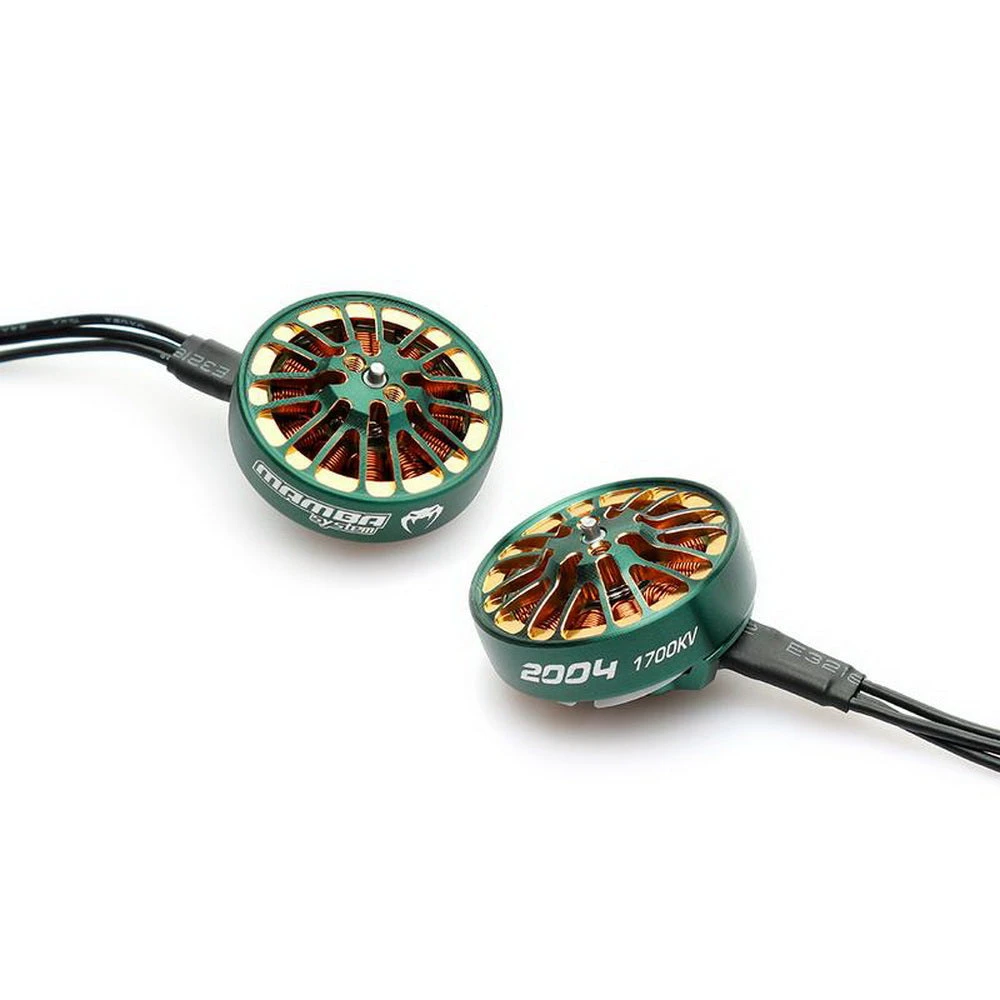

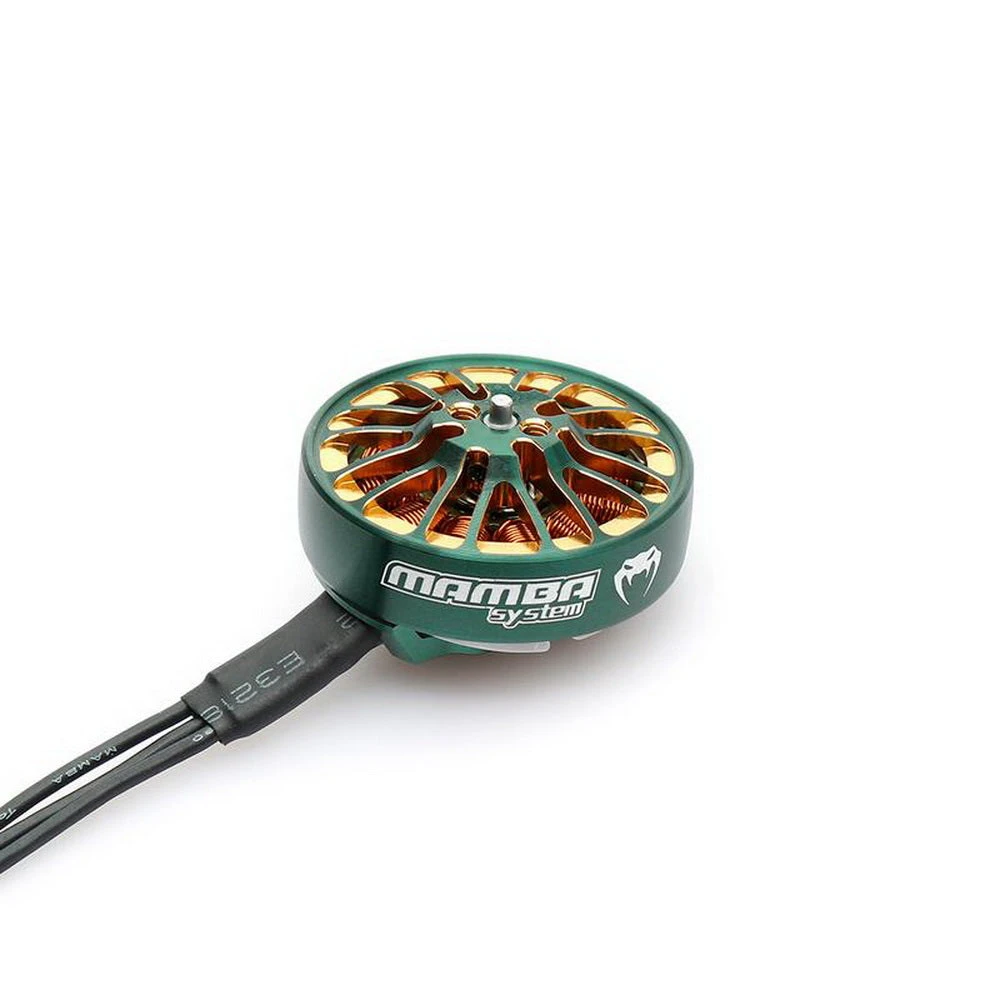

DIATONE MAMBA TOKA 2004 1700KV Or 2900KV Racing Motor Green
Original price was: $16.99.$11.89Current price is: $11.89.
- Buy with confidence, backed by quality.
- Quality products, fair prices.
- Buy with Peace of Mind
- Effortless Shopping, Quality Products
Specification:
Mamba Toka 2004 1700KV Racing Motor
Overall Dimension:Φ26.2×15.3mm
prop mounting shaft diameter:1.5mm
Installation hole position:12×12mm，M2
Prop: 3.5inch~5inch                                                                Â
Bearing：7*3*3
Shaft Diameter:3.0mm
Lead Wire Size：24AWG×150mm
slots/poles:12N14P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：20mm
Stator Height:4mm
Rated Voltage:4~6S (16.8V~25.2V)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
Peak Current: 17.52A
ldle Current：10V/0.3~0.8A                                                               Â
Maximum Power: 418.1W
Internal Resistance：210Ω
Weight: 16.3g
Â
Mamba Toka 2004 2900KV Racing Motor
Overall Dimension:Φ26.2×15.3mm
prop mounting shaft diameter:1.5mm
Installation hole position:12×12mm，M2
Prop: 3.5inch~5inch                                                                Â
Bearing：7*3*3
Shaft Diameter:3.0mm
Lead Wire Size：24AWG×150mm
slots/poles:12N14P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：20mm
Stator Height:4mm
Rated Voltage:3~4S (12.6V~16.8V)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
Peak Current: 31.63A
ldle Current：10V/0.9~1.5A                                                               Â
Maximum Power: 418.1W
Internal Resistance：90Ω
Weight: 16.3g

| Style | 1700kv, 2900kv |
|---|
