DIATONE MAMBA TOKA 2203.5 1650kv, 2650kv Or 3300kv Racing Motor Green

DIATONE MAMBA TOKA 2203.5 1650kv, 2650kv Or 3300kv Racing Motor Green - Image 2

DIATONE MAMBA TOKA 2203.5 1650kv, 2650kv Or 3300kv Racing Motor Green - Image 3

DIATONE MAMBA TOKA 2203.5 1650kv, 2650kv Or 3300kv Racing Motor Green - Image 4

DIATONE MAMBA TOKA 2203.5 1650kv, 2650kv Or 3300kv Racing Motor Green - Image 5

DIATONE MAMBA TOKA 2203.5 1650kv, 2650kv Or 3300kv Racing Motor Green

Original price was: $19.99.Current price is: $13.99.

SKU: YNVKZ 6830251835580 Categories: Diatone, FPV & Quad Tag: Discountable

Buy with confidence, backed by quality.
Quality products, fair prices.
Buy with Peace of Mind
Effortless Shopping, Quality Products

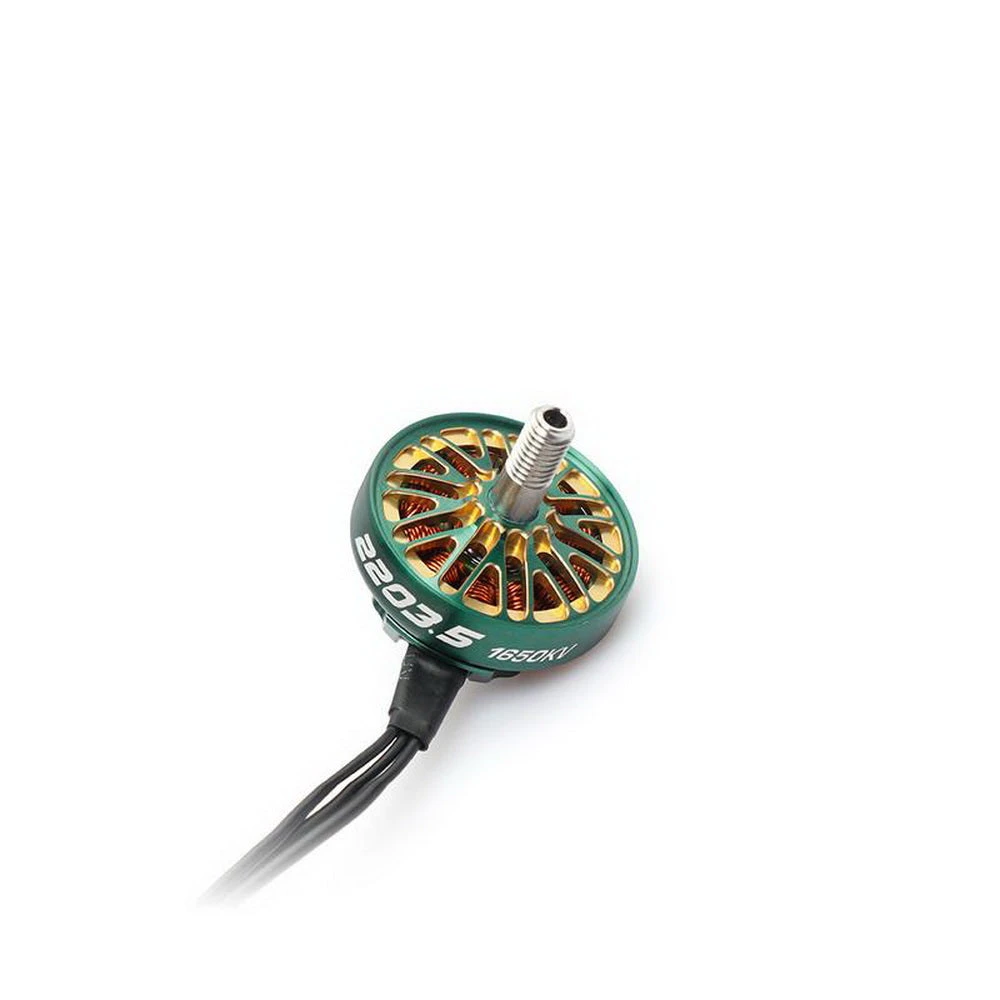

MAMBA TOKA 2203.5 1650KV Racing Motor Green

Specifications:

Overall Dimension: Φ28.9×29.4mm
Prop Mounting Shaft Diameter: 5mm
Installation Hole Position: 16×16mm，M3
Compatible Prop Size: 5 inches
Bearing Size: 944
Shaft Diameter: 4.0mm
Lead Wire Size: 24AWG×190mm
Slots/Poles: 12N14P
Magnet Wire: 240℃ Enameled Wire
Stator Diameter: 22mm
Stator Height: 3.5mm
Rated Voltage: 4~~6S (16.8V~~25.2V)
Peak Current: 15.59A
Idle Current: 10V/0.3~1.0A
Maximum Power: 380.8W
Internal Resistance: 232Ω

Notes:

Suitable for racing drone applications
High-quality materials and construction
Efficient design for longer battery life and more power
Green color for a distinctive look on your drone

2203.5 1650KV Motor Table

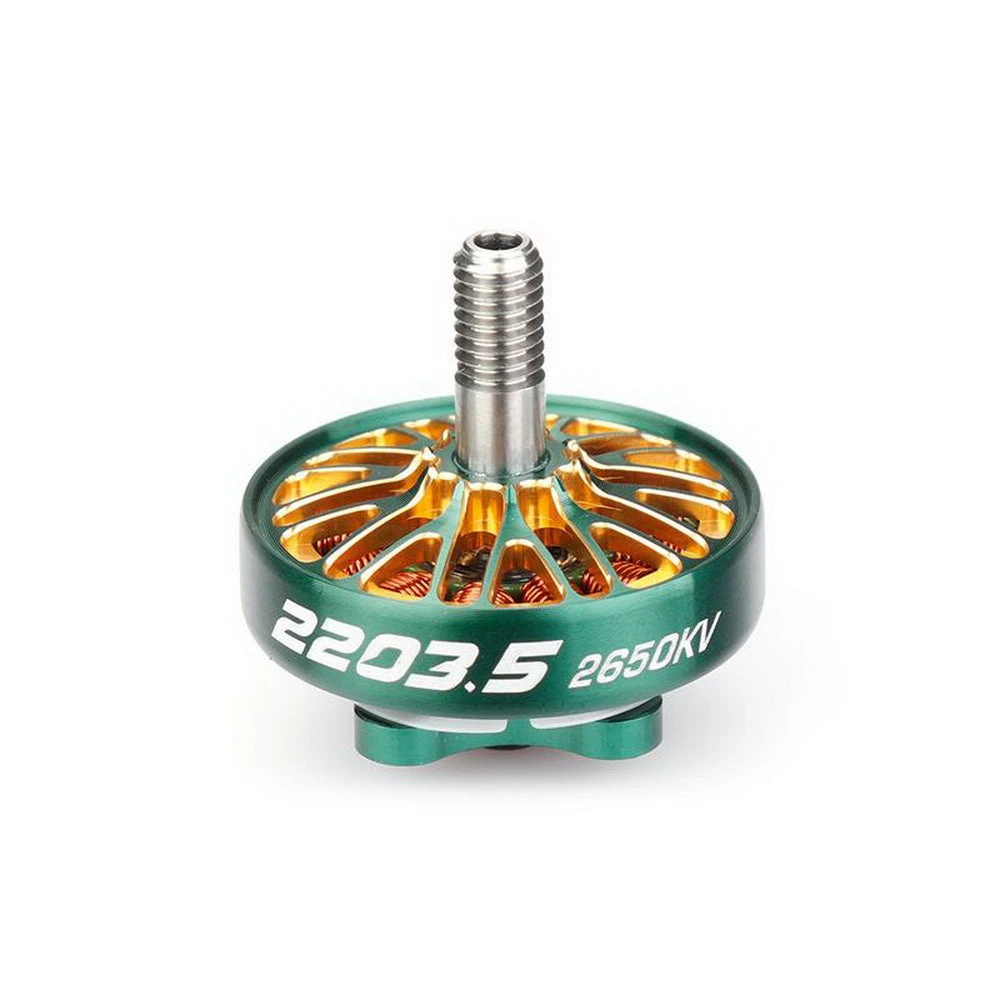

MAMBA TOKA 2203.5 2650KV Racing Motor Green

Overall Dimension:Φ28.9×29.4mm
prop mounting shaft diameter:5mm
Installation hole position:16×16mm，M3
Prop:  5inch
Bearing：9*4*4
Shaft Diameter:4.0mm
Lead Wire Size：24AWG×190mm
slots/poles:12N14P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：22mm
Stator Height:3.5mm
Pated Voltage:3~4S (12.6V~16.8V)
Peak Current: 27.64A
ldle Current：10V/0.9~1.9A
Maximum Power: 441.24W
Internal Resistance：120Ω

2203.5 2650 motor table

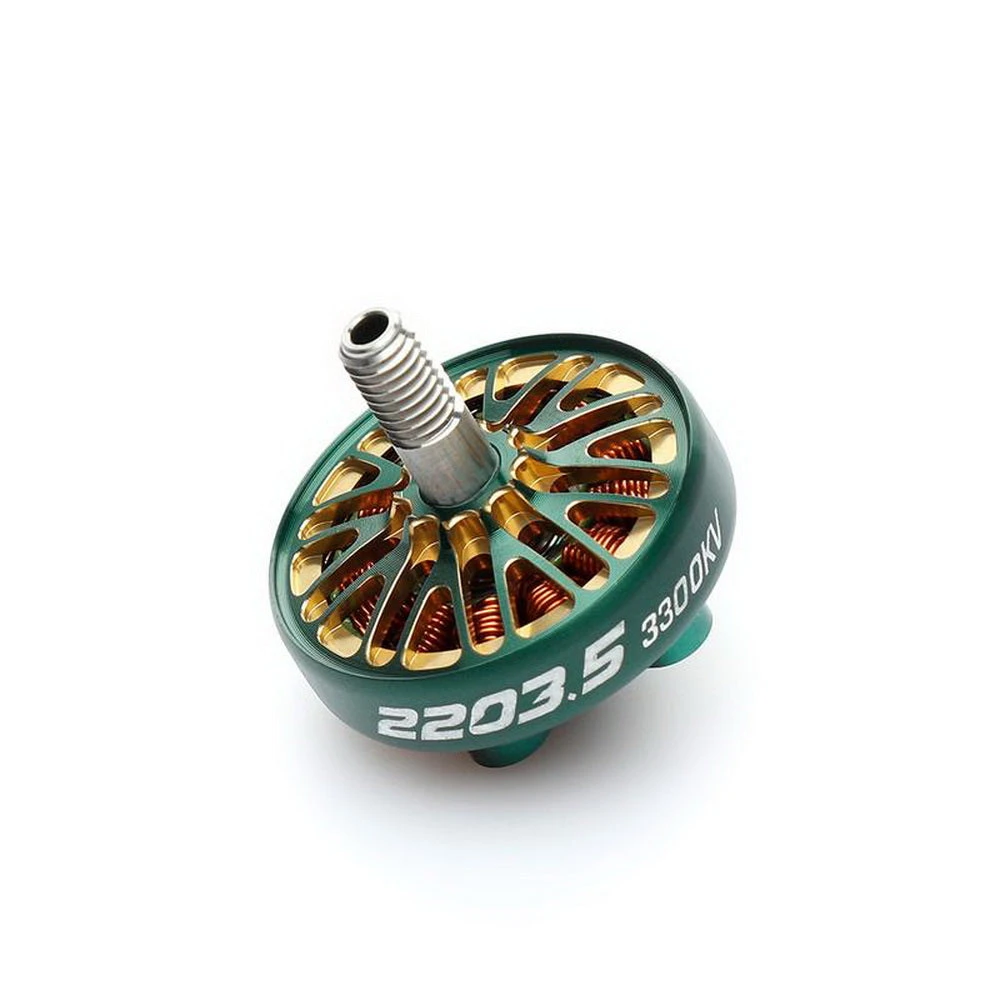

Mamba Toka 2203.5 3300KV Racing Motor Green

Overall Dimension:Φ28.9×29.4mm
Prop mounting shaft diameter:5mm
Installation hole position:16×16mm，M3
Prop:  3.5inch
Bearing：9*4*4
Shaft Diameter:4.0mm
Lead Wire Size：24AWG×190mm
slots/poles:12N14P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：22mm
Stator Height:3.5mm
Rated Voltage:3~4S (12.6V~16.8V)
Peak Current: 29.78A
ldle Current：10V/1.5~2.2A
Maximum Power: 475.1W
Internal Resistance：80Ω
