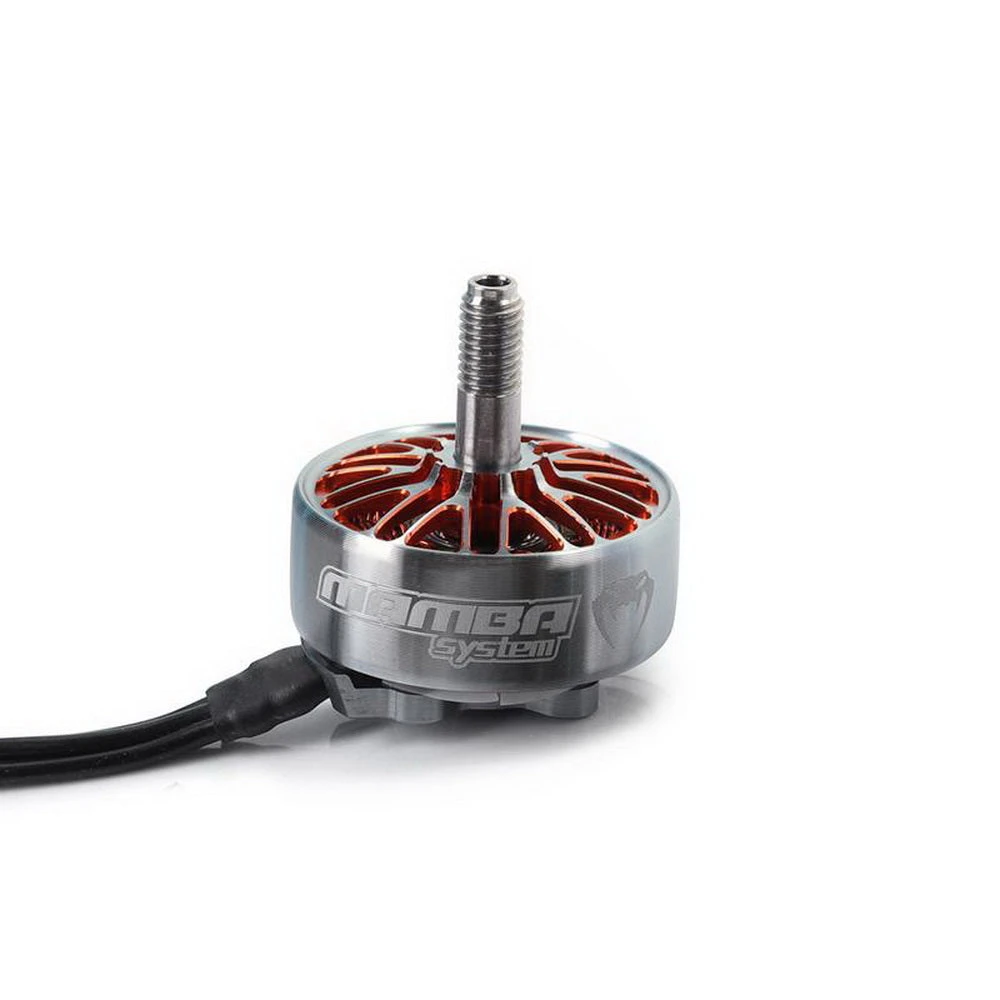

DIATONE Mamba TOKA 2306.5 1700kv, 2450kv Or 2650kv Racing Motor
Original price was: $19.99.$13.99Current price is: $13.99.
- Buy with confidence, backed by quality.
- Quality products, fair prices.
- Buy with Peace of Mind
- Effortless Shopping, Quality Products
DIATONE Mamba TOKA 2306.5 1700kv, 2450kv or 2650kv Racing motor

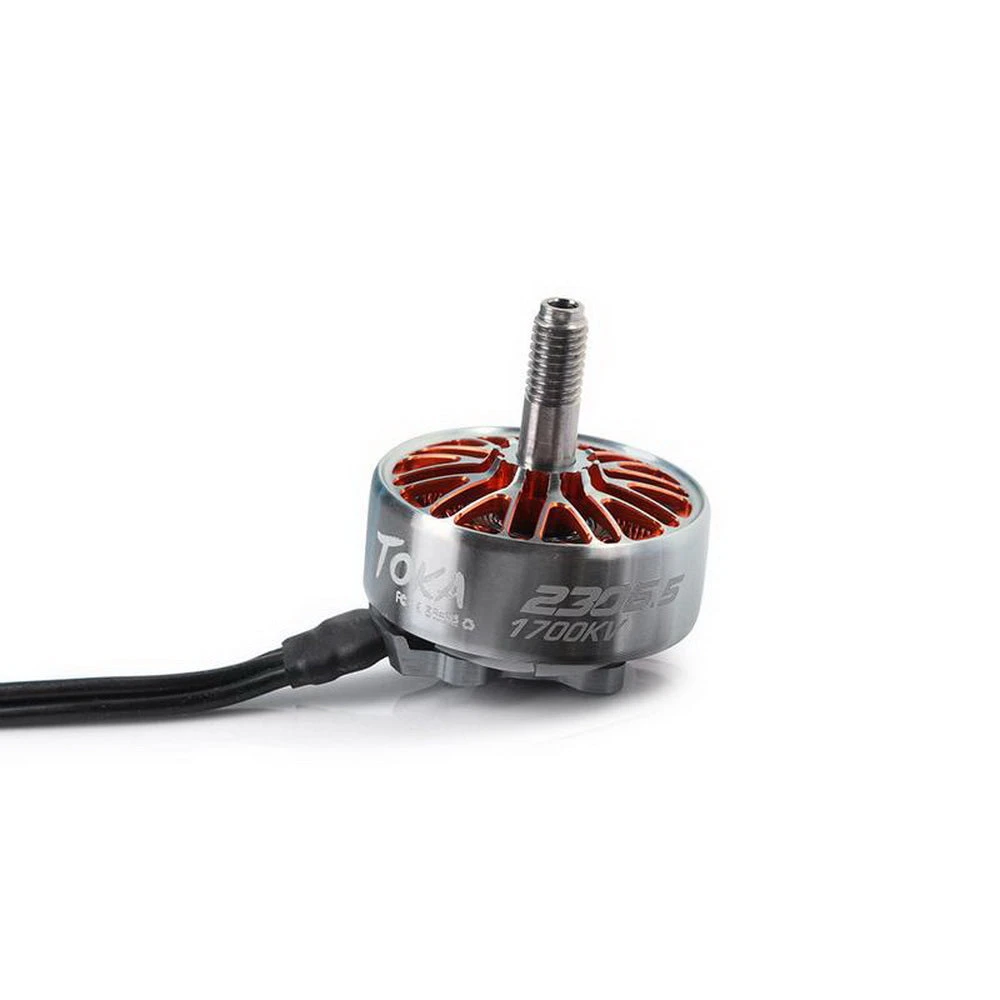

MAMBA TOKA 2306.5 1700KV MOTOR
MOTOR TABLE
Overall Dimension:Φ29.7×18.7mm
prop mounting shaft diameter: M5
Installation hole position:16×16mm，M3
Prop: 5inch
Bearing：9*4*4
Shaft Diameter:4.0mm
Lead Wire Size：24AWG×100mm
slots/poles:12N14P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：23mm
Stator Height:6mm
Rated Voltage:4~6S (16.8V~25.2V)
Peak Current: 45A
ldle Current：10V/1.17A
Maximum Power: 1100W
Internal Resistance：77Ω

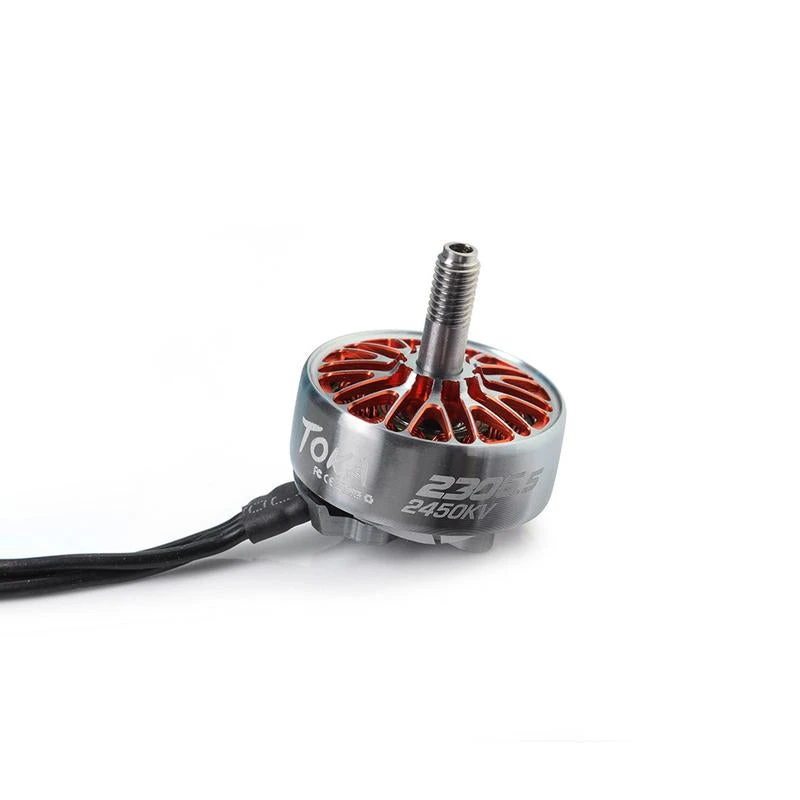

MAMBA TOKA 2306.5 2450KV MOTOR
Overall Dimension:Φ29.7×18.7mm
prop mounting shaft diameter: M5
Installation hole position:16×16mm，M3
Prop: 5inch
Bearing：9*4*4
Shaft Diameter:4.0mm
Lead Wire Size：24AWG×100mm
slots/poles:12N14P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：23mm
Stator Height:6mm
Rated Voltage:3~4S (12.6V~16.8V)
Peak Current: 45A
ldle Current：10V/1.98A
Maximum Power: 730W
Internal Resistance：52Ω

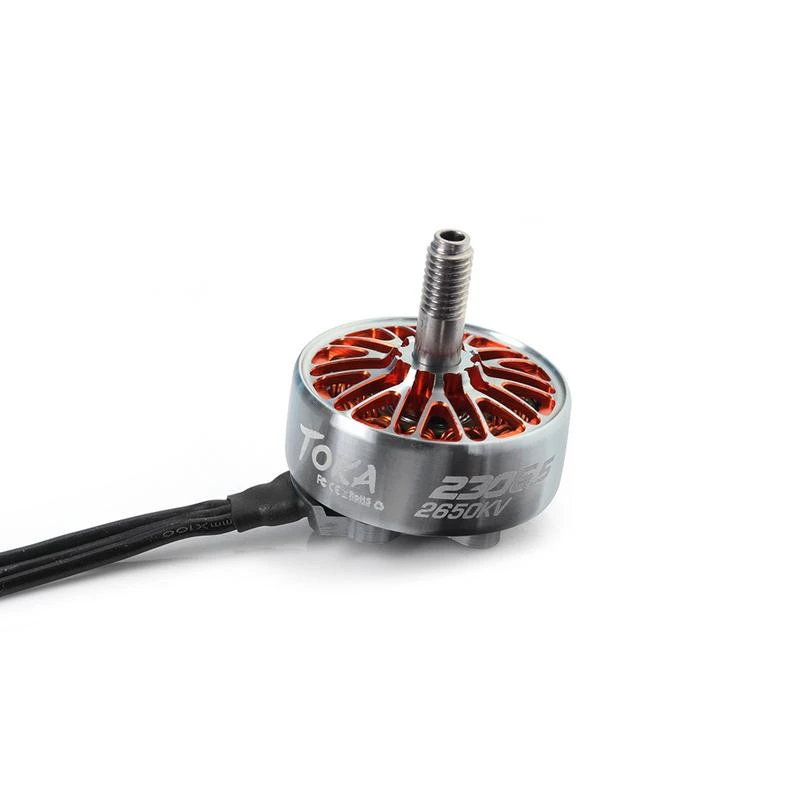

MAMBA TOKA 2306.5 2650KV MOTOR
Overall Dimension:Φ29.7×18.7mm
prop mounting shaft diameter: M5
Installation hole position:16×16mm，M3
Prop: 5inch
Bearing：9*4*4
Shaft Diameter:4.0mm
Lead Wire Size：24AWG×100mm
slots/poles:12N14P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：23mm
Stator Height:6mm
Rated Voltage:3~4S (12.6V~16.8V)
Peak Current: 59A
ldle Current：10V/2.5A
Maximum Power: 940W
Internal Resistance：38Ω
| Style | 1700kv, 2450kv, 2650kv |
|---|
