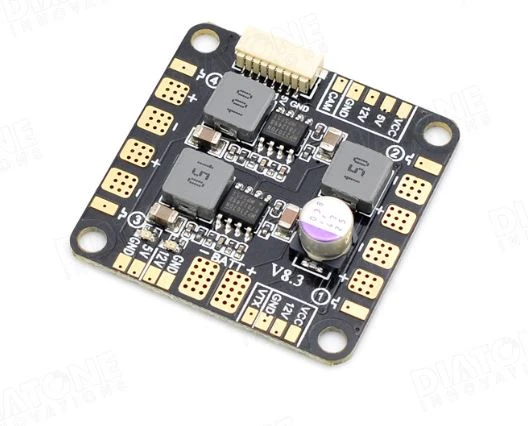

Diatone V8.3 LC Filter Power Distribution Board
Original price was: $6.99.$4.89Current price is: $4.89.
- Buy with confidence, backed by quality.
- Quality products, fair prices.
- Buy with Peace of Mind
- Effortless Shopping, Quality Products

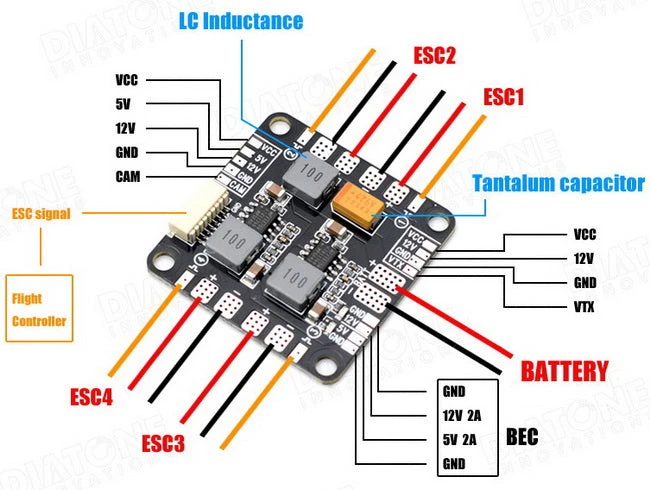

Diatone V8.3 Power Distribution Board with LC Filter.
Features:
Both-sides soldering ESC, convenient to use
2oz copper & 4-layers PCB
Low Ripple current
ESC & Battery solder tabs in pairs.
Solder Bridges of various voltage for Camera & VTX.
DC/DC synchronous buck regulator, Efficiency is up to 95%.
5V & 12V Output LED indicators & Short circuit tolerant.
Specification:
Working Voltage: 3~6S LiPo (11.1-22.2V)
Output Voltage: 5V&12V
Output Current: 2A
ESC outputs: 4
Current output: 4*20A
Size: 36*36mm
Weight: 5.5g
Mounting: 30.5mm / Φ3mm
