Dragon Rider 500mW 5.8G Video Transmitter

This video transmitter works in the FCC allocated frequency range. Please make sure to check the following frequency list to make sure compatible with your receiver.

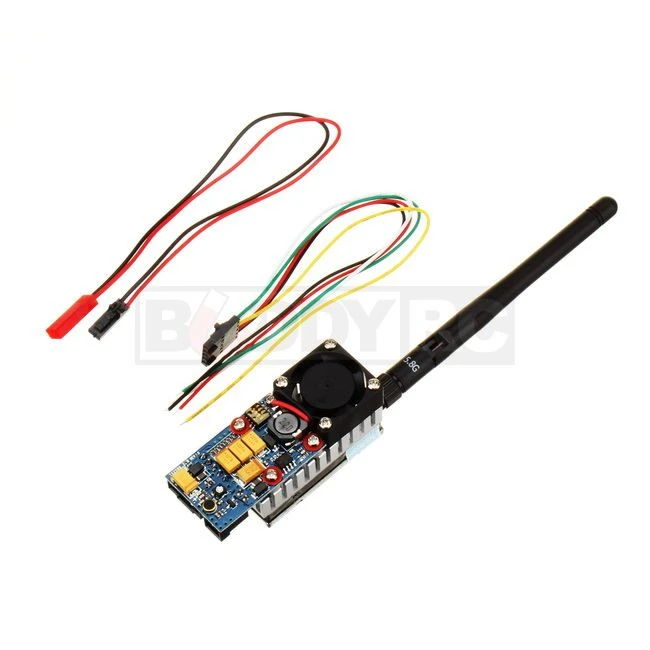

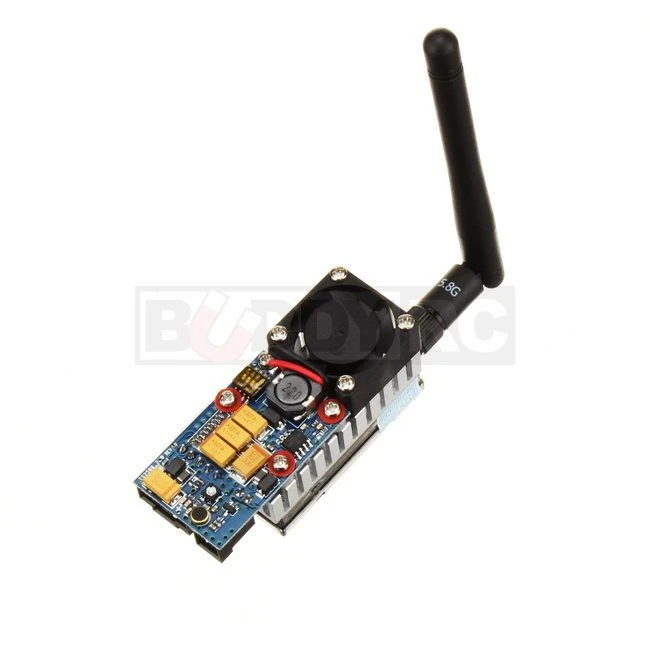

Above photo indicates appearances of different side view of the product. There is ONLY one transmitter in a package.
A power cord and a signal cable are included in the package. Please check above photo for cable wiring details.

Transmitter frequency:
Amateur Radio Band, 8channels.
Channel 1, 5725 MHz;
Channel 2, 5745 MHz;
Channel 3, 5765 MHz;
Channel 4, 5785 MHz;
Channel 5, 5805 MHz;
Channel 6, 5825 MHz;
Channel 7, 5845 MHz;
Channel 8, 5865 MHz.
Please note that the channel listing on the back of the print manual in the package does not list the frequencies correctly relative to the channels. The channels are as listed here on this web listing.

This product is NOT frequency-compatible with FatShark, ImmersionRC, Airwave based equipments.
They do not work with some other receivers that use different frequency allocations that work with transmitters that are not legal for import or use in the United States.

Transmitting Power: 500mW/27dBm
Transmitting distance: >5000m(open area)
Frequency control: built-in frequency and phase lock loop
AV input: analog AV signal input
Antenna connector: SMA(inside the needle)
Power supply: 6.5-12 volts
Current supply: 600mA
Size: 68 x 26 x 28mm
Weight: about 65g
