HEE WING FPV KIT Cam VTX Antenna

Original price was: $79.99.Current price is: $55.99.

SKU: YNVKZ 7591888355566 Categories: Airplane, HeeWing Parts Tags: AIrplane Parts, HEE WING, HEE WING F01, HEE WING T1, HEEWING PARTS, WING KIT

Buy with confidence, backed by quality.
Quality products, fair prices.
Buy with Peace of Mind
Effortless Shopping, Quality Products

Description
Reviews (0)

HEE WING FPV KIT

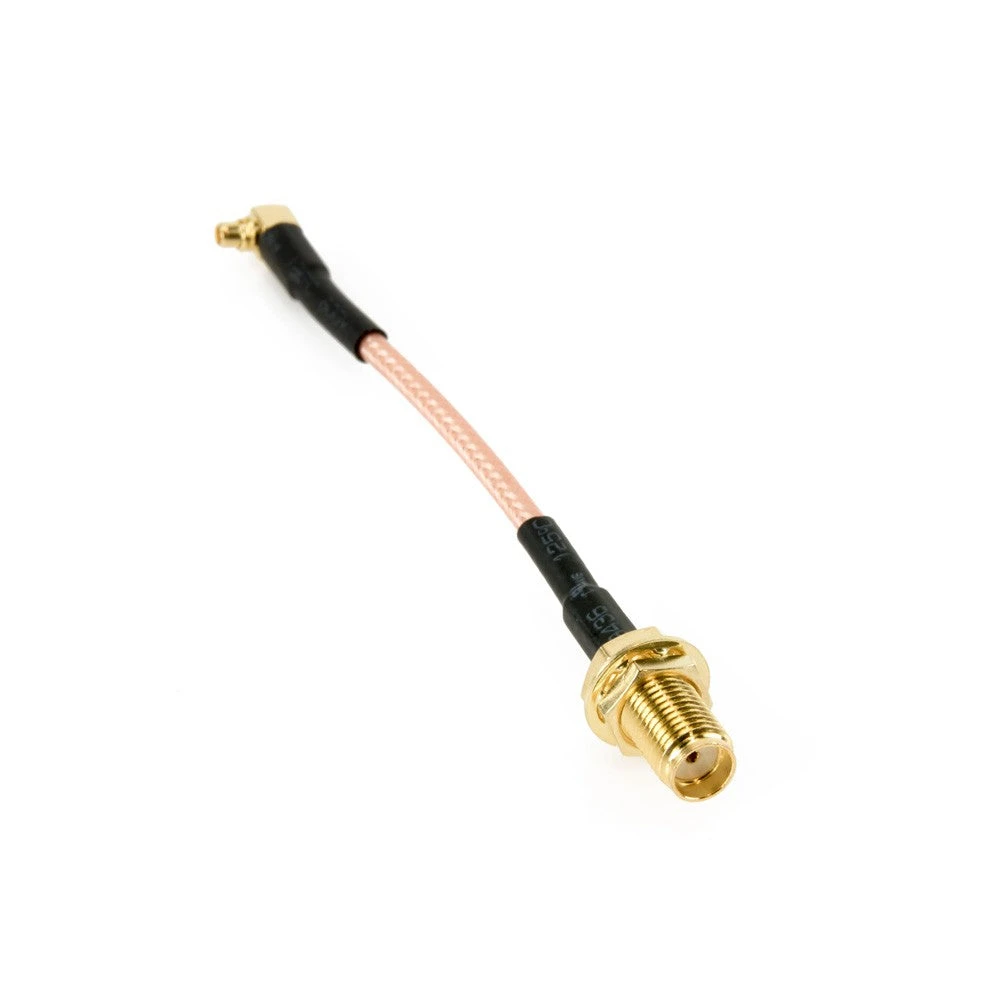

Included: Ratel 2 Camera, PandaRC VTX, Foxeer Lollipop 3 Antenna and MMCX to SMA extension

Specifications:

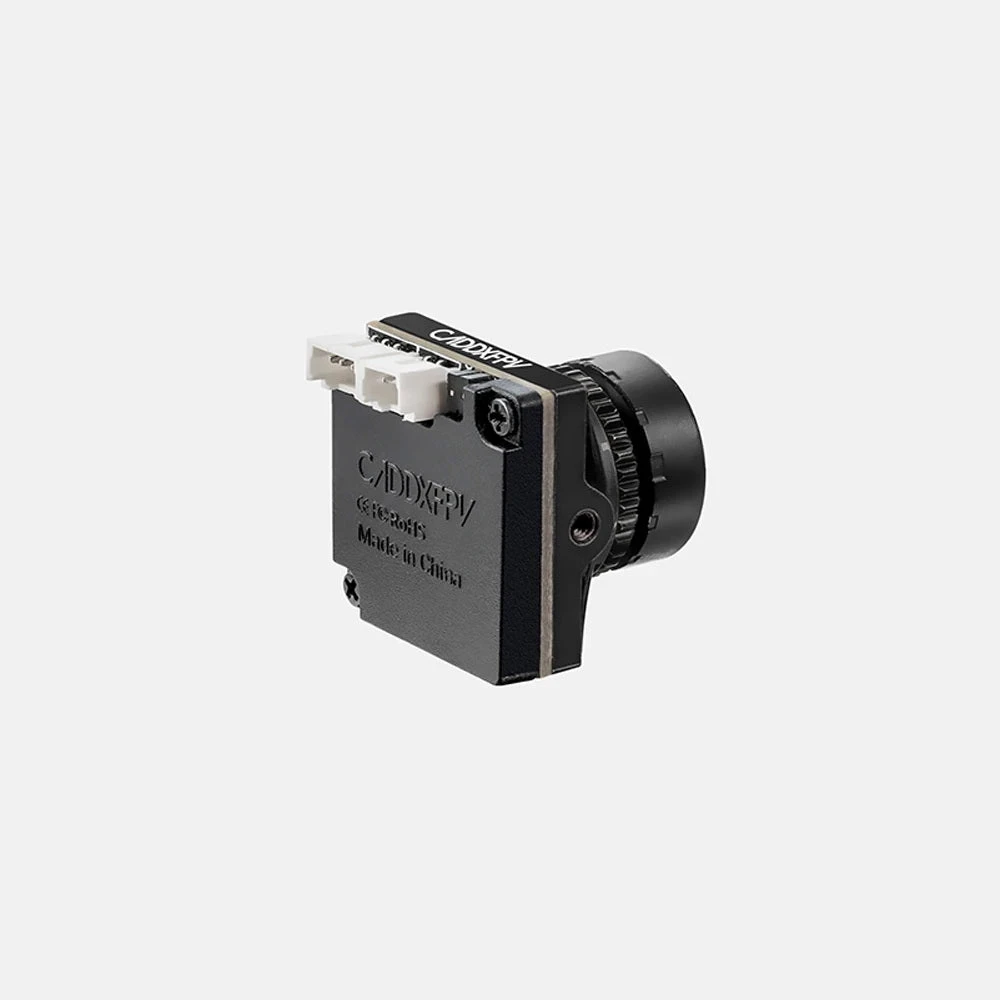

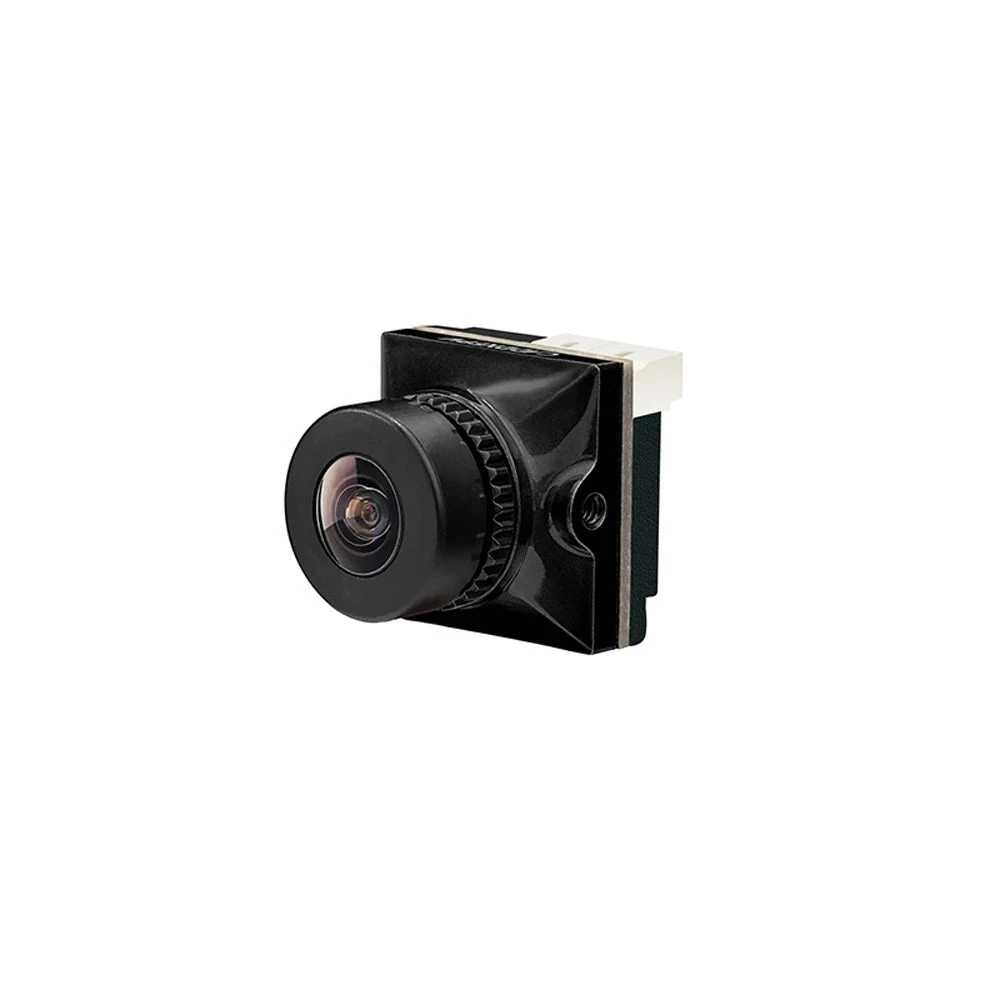

Brand Name: Caddx

Item Name: Ratel 2

Sensor: 1/1.8” inch Starlight

Resolution: 1200TVL

Field of view: 165°

Lens: 2.1mm

TV system: NTSC and PAL (switchable)

Image: 4: 3 and 16: 9 (switchable)

WDR: Super WDR

DNR: 3DNR

Min. Illumination: 0.0001LUX

Video output: CVBS

Day / Night: Auto / Color / B&W / EXT

Shutter speed: PAL: 1/50 ~ 100,000; NTSC: 1/60 ~ 100,000

Wide power input: 5-40V

Working temperature: -20℃~60℃

Weight: 5.9g

Dimension: 19*19*20mm

Package included:

1x Caddx Ratel 2 camera

1x menu board

1x 2 pin silicone cable

1x 3 pin silicone cable

1x 1.5mm Allen key

1x warranty card

Specification:

1. The output power is stable and the transmission distance is long: >0.5km@25mW, >1km@200mW, >1.5km@400mW (original antenna);

2. 6-stop transmit power switching: 0mW/25mW/50mW/100mW/200mW/400mW;

3. Support OSD interface to adjust transmission frequency and power;

4. 16 frequency points output, including A group and R group;

5.Lock frequency quickly and without disturbing colleagues when powering on.

6. Output power self-test function;

7. Full Video Format: NTSC/PAL;

8. The input voltage range is wide and the power consumption is low: 6V-26V, 12V/240mA@400mW;

9. Small size: 24mm*24mm*3mm, installation hole 20mm*20mm (4-M2);

10. Light weight: <3g (not included antenna);

Package included:

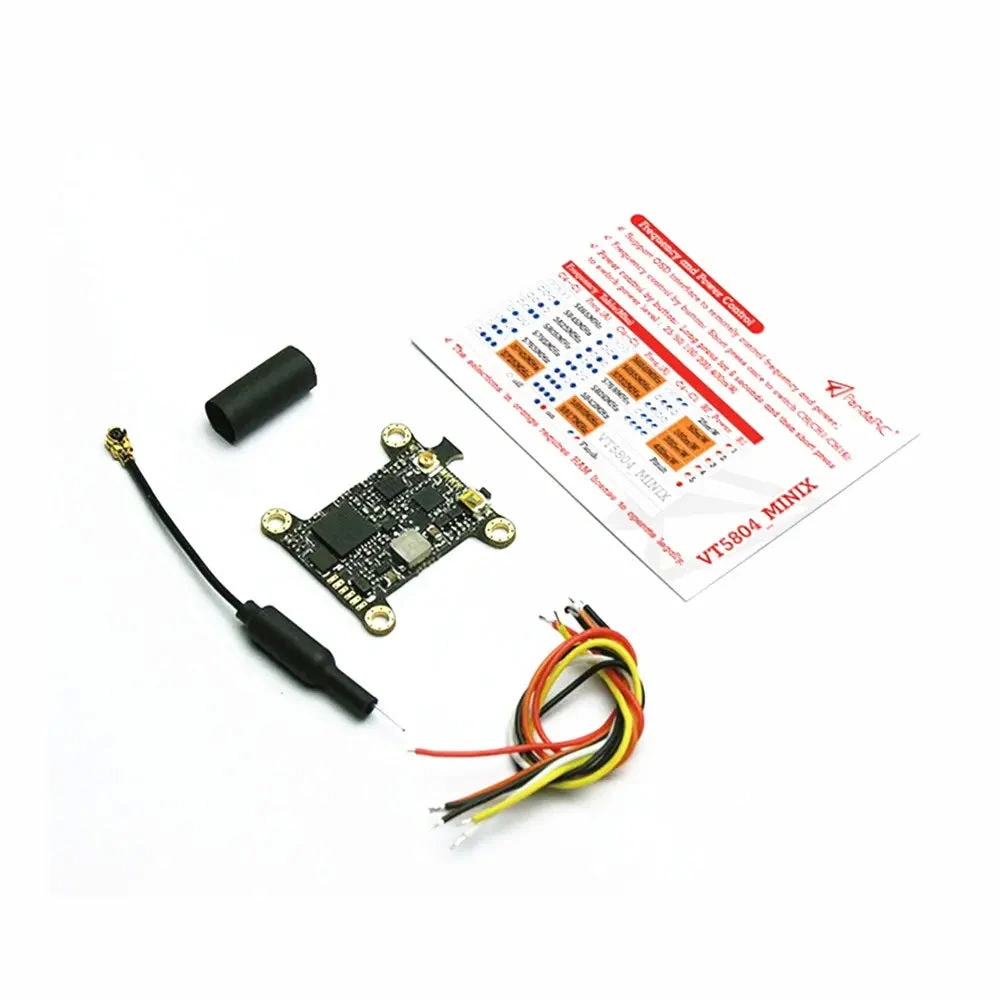

1 x VT5804 MINIX

1 x Rattail Antenna

1 x frequency table

6x power cord

1 x heat shrink tube

Antenna:

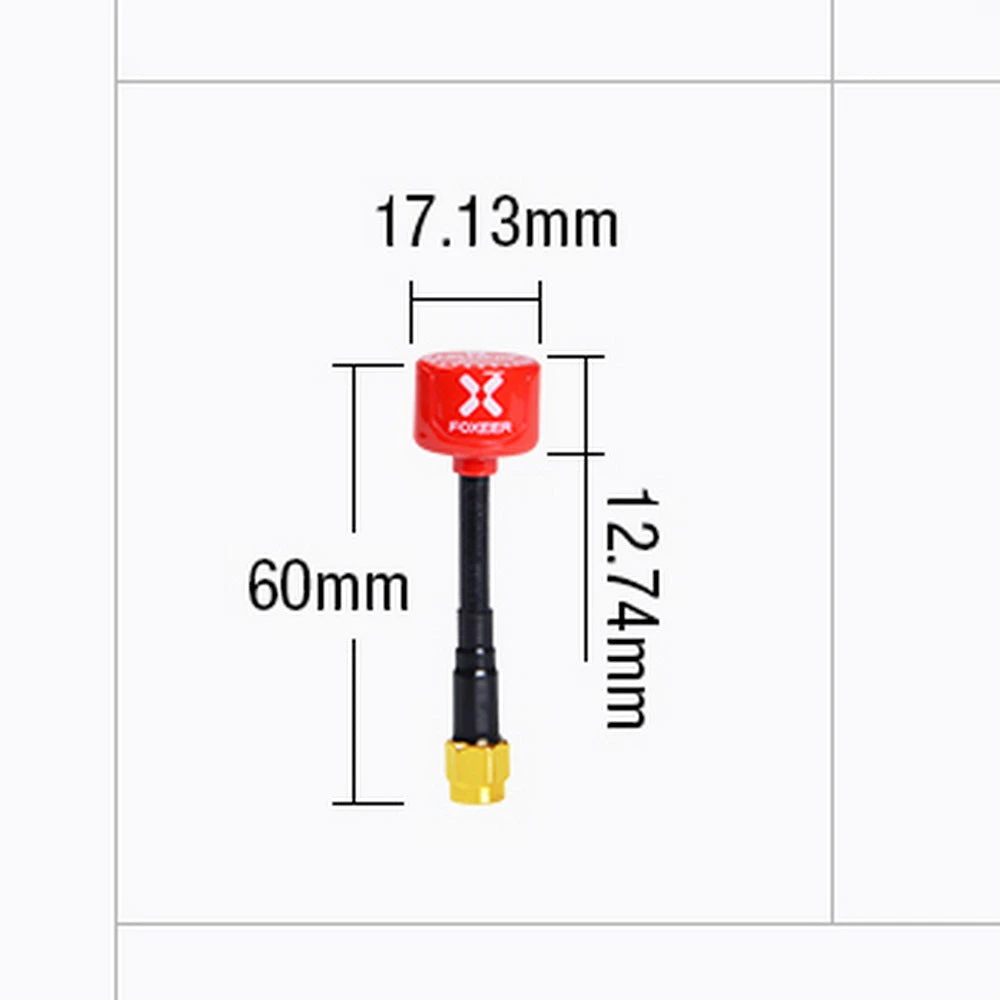

Foxeer Lollipop 3 Antenna

Foxeer Antenna Lollipop 3 5.8G 2.3dBi RHCP FPV Antenna Specification: Shell material: Imported PC+ABS Weight: 7.5g Antenna length: 60mm Gain: 2.5 DBi Center frequency: 5.8 GHz Bandwidth: 500 MHz (5.5 – 6.0GHz) Matching: VSWR < 1.2 (at center frequency) Axial ratio: < 3db Radiation efficiency: 98% Polarization: RHCP Connector: RP-SMA / SMA Color: Black Package Included: 1 x Foxeer Lollipop 5.8G 2.3dBi FPV Antenna
