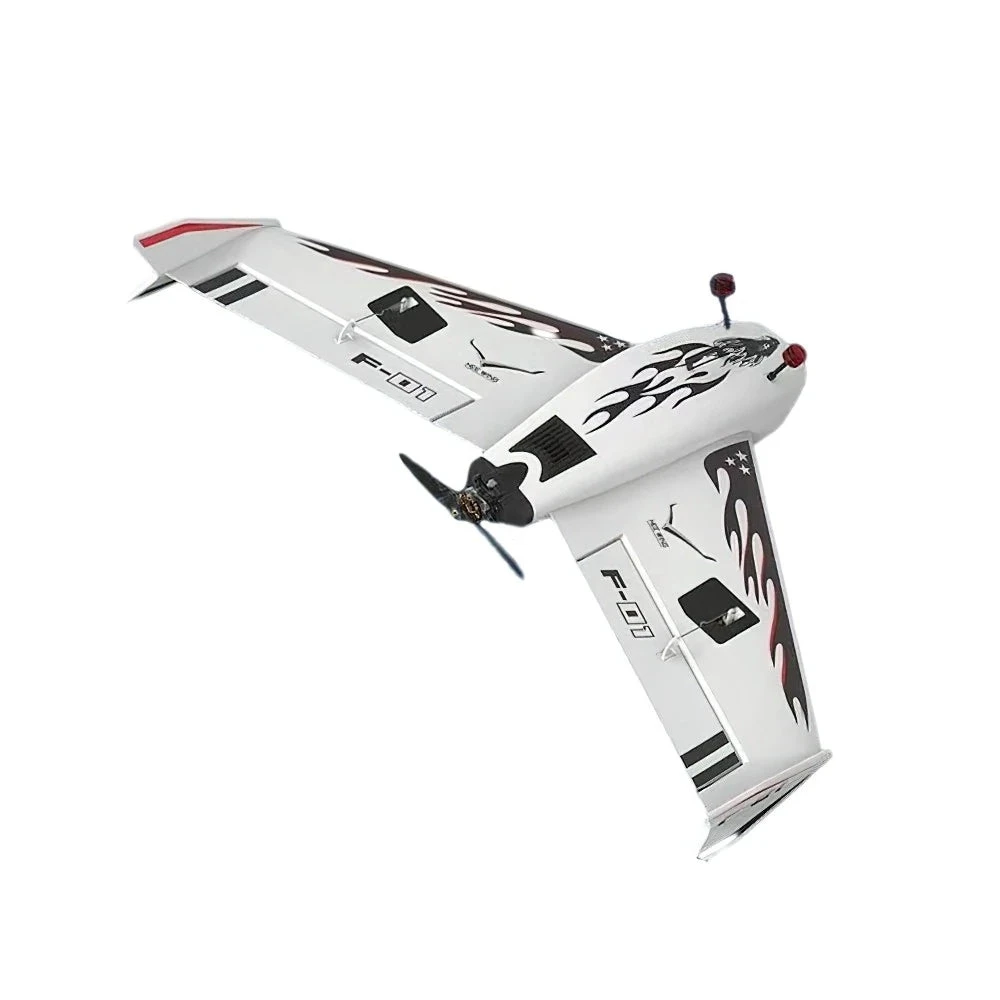

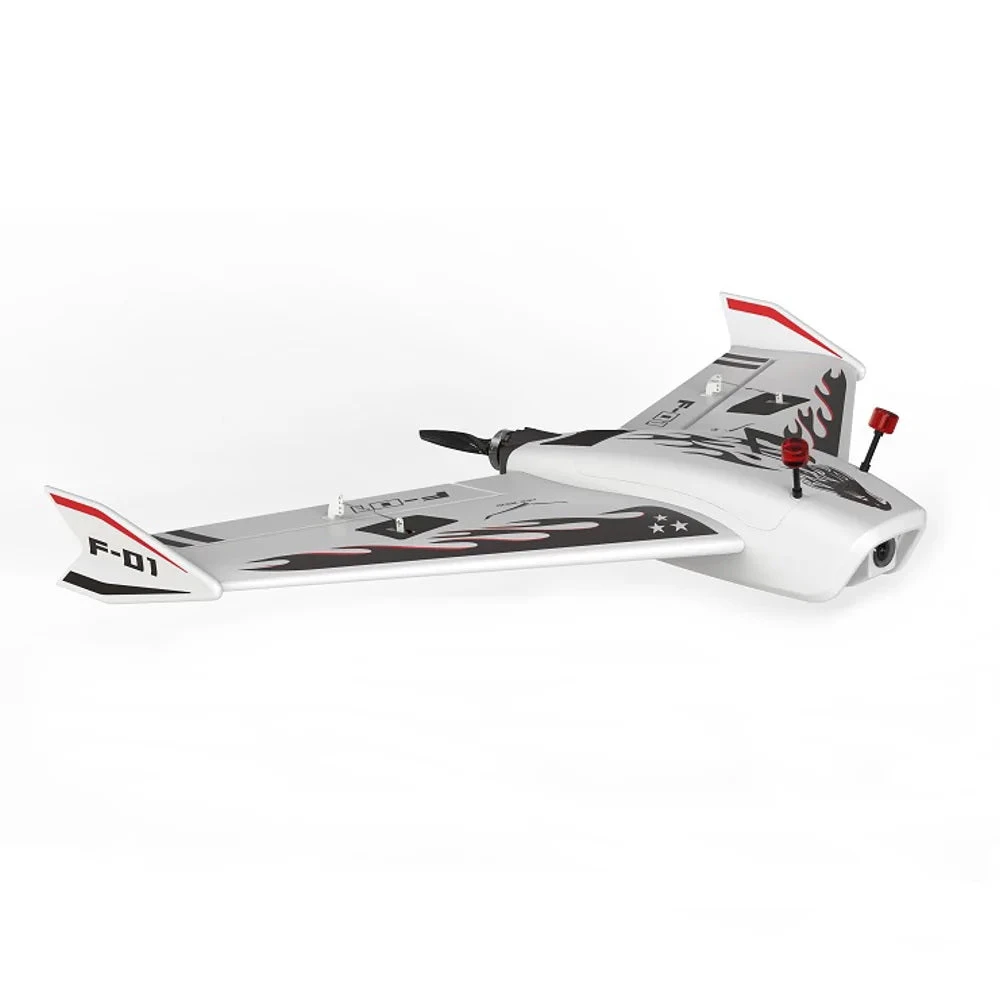

HEE WING RC F-01 Ultra Delta Wing 690MM EPP RC Airplane Youth Edition



Features:

• Independent detachable lens plug for FPV and visual observation flights
• Wings with embedded carbon fiber rods at different angles
• Compact wingspan with spacious electronics compartment
• Four magnets for secure hatch fastening
• Wingtip design for vertical take-off mode
• Horizontal and vertical battery mounting options
• Tailored lens ring for enhanced protection
• New propeller locking method
• Tailored for DJI Digital Air unit

Specifications:

• Airplane dimensions: Wingspan 690mm, Height 88mm, Length 415mm
• Fuselage space: Battery compartment 175mm x 175mm x 55mm
• VTX fixed seat: Compatible with digital and analog VTX
• KIT weight: 150g (EPP-30)/190g (EPP-20)
• ESC compartment: 70mm x 38mm x 20mm
• Materials: EPP/ABS/Carbon Fiber
• Max Flight speed: ≥220km/h
• Max Endurance: >70 minutes
• Take-off weight: 350g – 850g
• Min Flight speed: <27km/h
• Thrust: ≥920g (6 x 4E prop)
• Propeller: 5 x 5E/6 x 4E
• Max Mileage: >45km
• Battery: 2S – 4S
• Note: Lens cover recommended when speed is ≥100km/h to prevent excessive inflow air from blowing away the hatch.

PNP Youth Edition:

• Motor: 2204-2200kv brushless x 1
• ESC: FTC 20A brushless/2A UBEC build-in x 1
• Propeller: 5045 x 2
• Servo: digital 9g x 2
• Hee Wing RX-1.0 flight controller x 1
