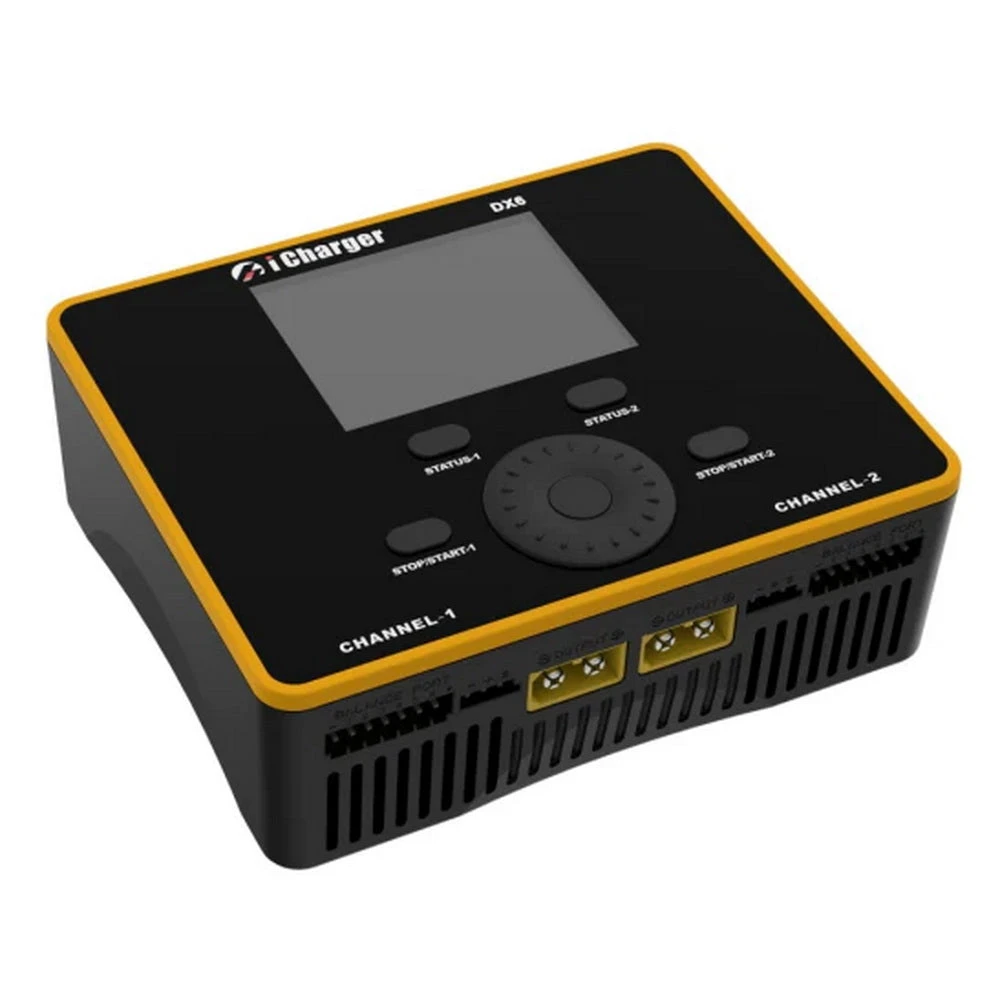

ICharger DX6 Dual Port 6S 1500 Watts Charger

iCharger DX6 Dual Port 6S 1500 Watts Charger

Click here to download the manual for iCharger DX6.



Introducing the highly anticipated iCharger DX6 – a dual-channel, compact model that packs a powerful punch with a maximum output of 1500W. Built on the popular X6, the DX6 offers a balance current of 2A that speeds up charging times and can charge LiPo batteries up to 6S at an impressive rate of 32A per channel (50A total).

Equipped with a full-color IPS display that offers a wealth of information at a glance, the DX6 also features a discharge rate of up to 32A, a unique feature for chargers of this size. It also supports iCharger’s regenerative discharge feature, providing a full 1500W of discharge capability when powered from a suitable battery bank.

Despite its small size and affordable price point, the DX6 is a full-featured iCharger that supports multiple chemistries and offers a wide range of settings. Its improved software interface makes it easy to record battery data and upgrade firmware, giving users the performance and versatility they’ve come to expect from iCharger products.

Specifications:

• Input voltage range: 9-34VDC
• Maximum input current limit: 65A (Channel 45A)
• Maximum charge/discharge current: 50A (Channel 35Ax2)
• Maximum charge power capacity: 1500W (Channel 900Wx2)
• Maximum discharge power capacity: 60W (Channel 46Wx2)
• Maximum regenerative discharge power capacity: 1500W (Channel 900Wx2)
• Maximum extra discharge power capacity: 1600W (Channel 900W@30V/32A)
• Maximum current drain for balancing: 4A (Channel 2Ax2)
• Type-C PD port: 5V/3A, 9V/2A, 12V/1.5A
• Support Battery type: LiPo, Lilo, LiFe, LiVH, LTO, NiZn, NiMH, NiCd, Pb
• Net weight: 360g
• Dimension: 92×112×40mm

Package Includes:

• iCharger DX6 x 1pc
• Drive Disc x 1pc
