ISDT D1 Smart Charger

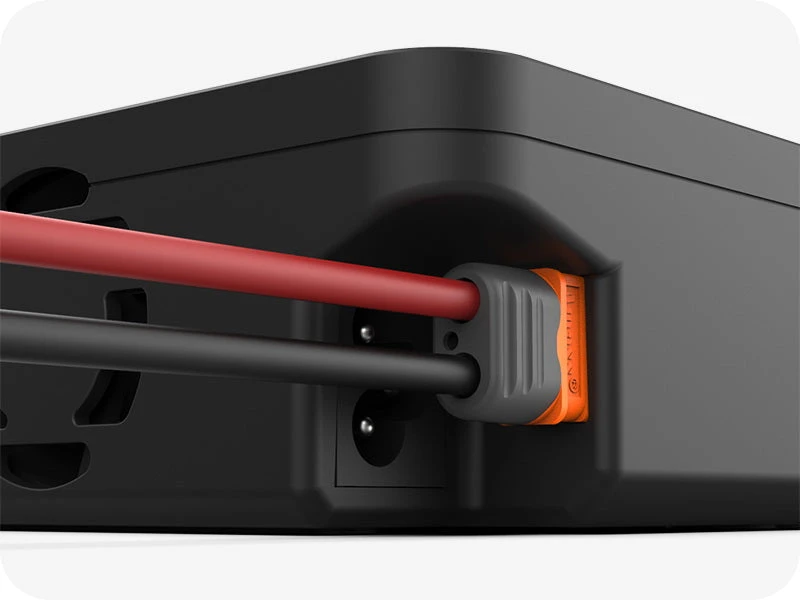

Introducing the iSDT D1 Smart Charger, a versatile and safe device designed to meet various charging requirements. It supports both AC and DC input modes with a maximum output power of 100W and 250W, respectively. The charger features a fool-proof input interface that ensures safe operation, with only one input selectable at a time.

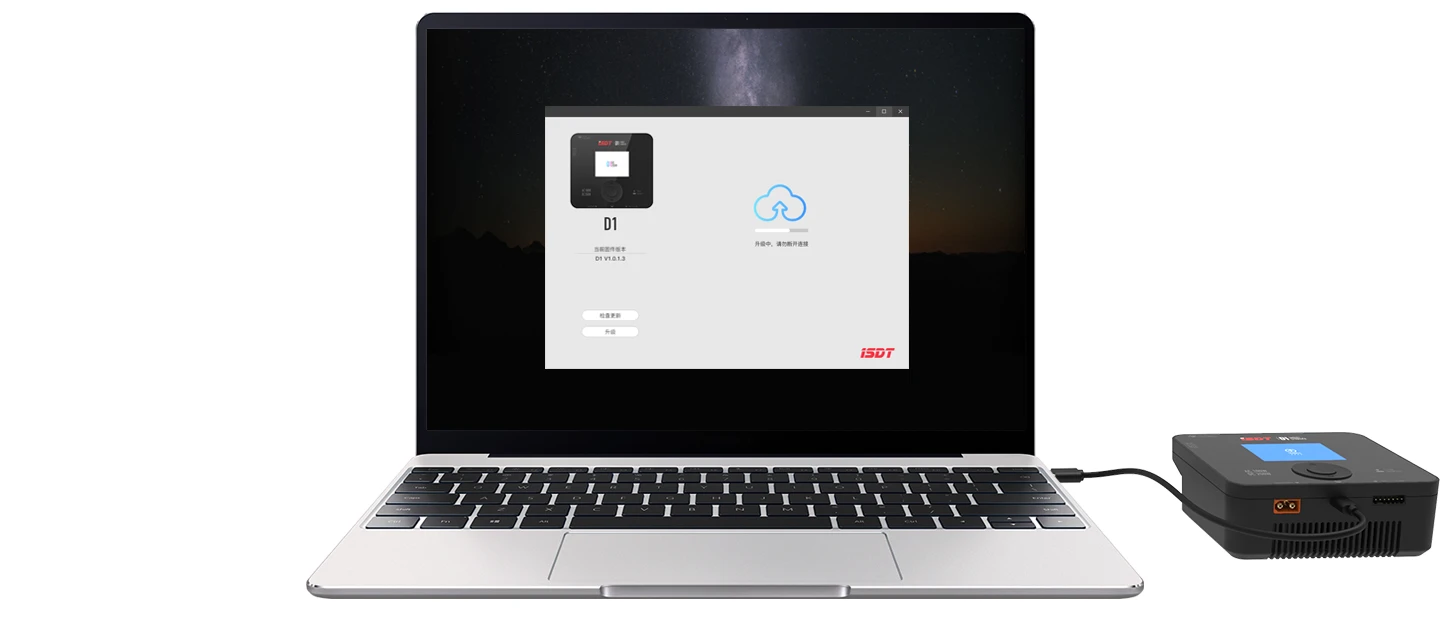

Upgrade the firmware through the USB-C interface and maintain advanced performance and features. The D1 Smart Charger comes with an upgraded scOS 2.0 that not only optimizes the system with a new dimension level but also improves the system stability. With new features such as DC Power mode, dark mode, and battery scrap, the D1 Smart Charger is designed to streamline support with BattGo and SmartPower, providing further interconnection to the ISDT ecosystem product information exchange.

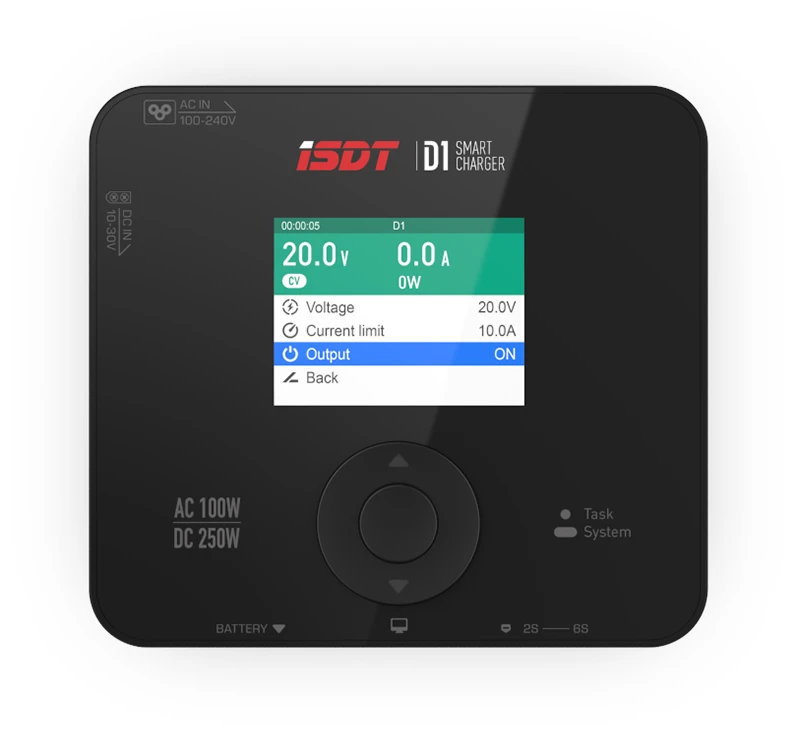

In adjustable digital power supply mode, the D1 Smart Charger delivers a maximum power output of AC 100W / DC 250W, with a charging current of 0.110A and a discharging current of 0.11.0A. It supports CC: 0.510A and CV: 230V, providing a customizable charging experience.

The scOS 2.0 introduces the dark mode feature, suitable for low-light scenarios, which reduces light damage to the user’s eyes. The D1 Smart Charger features battery waste mode, which ensures safe voltage reduction to 0V for scrap batteries.

With signature original creative interactive systems, the iSDT D1 Smart Charger serves 152 countries and regions and supports online upgrading for more languages, providing a better interactive system for the global market.

Specifications:

• Input voltage: AC 100240V / DC 1030V
• Output voltage: DC 1~35V
• Max. input current: DC 14A
• Charging current: 0.1~10A
• Discharging current: 0.1~1.0A
• Balance current: 1.5A/Cell Max
• Max. discharging power: 15W
• Max. charging power: AC 100W / DC 250W
• Abnormal voltage alarm: supported
• Incorrect cell count setting alarm: supported
• Supported battery types and cell count: LiFe, Lilon, LiPo 1~6S, LiHv 1-6S, Pb 1-12S, NiMH, Cd 1-16S
• Working temperature: 0~40℃
• Storage temperature: -20℃~60℃
• Dimension: 126x115x49mm
• Weight: About 460g
