ISDT P10 500W 16A 6S Dual Port Smart Charger

Introducing the ISDT P10, powered by innovation, and packed with features to make your charging experience hassle-free.

Smart Dual Channel Charging: With a high-speed processor delivering parameters to each port, you can expect synchronous and efficient charging. Maximum charging power for a single port can reach up to 250W.

Synchronous Parallel Charging: The built-in high-speed processor allows for synchronous balance charging across two channels. Parallel charging power can reach up to 400W, while P10 delivers a charging current range of 10A to 16A.

USB Firmware Upgrade: Always maintain advanced performance and features with the ISDT P10. Connect to a computer through the USB-C interface to upgrade to the latest firmware.

Adjustable Digital Power Supply: With adjustable digital power supply mode, CH1 of the charger can become a DC power supply with a maximum power output of 120W. CC ranges from 0.2A to 5A, and CV ranges from 5V to 24V.

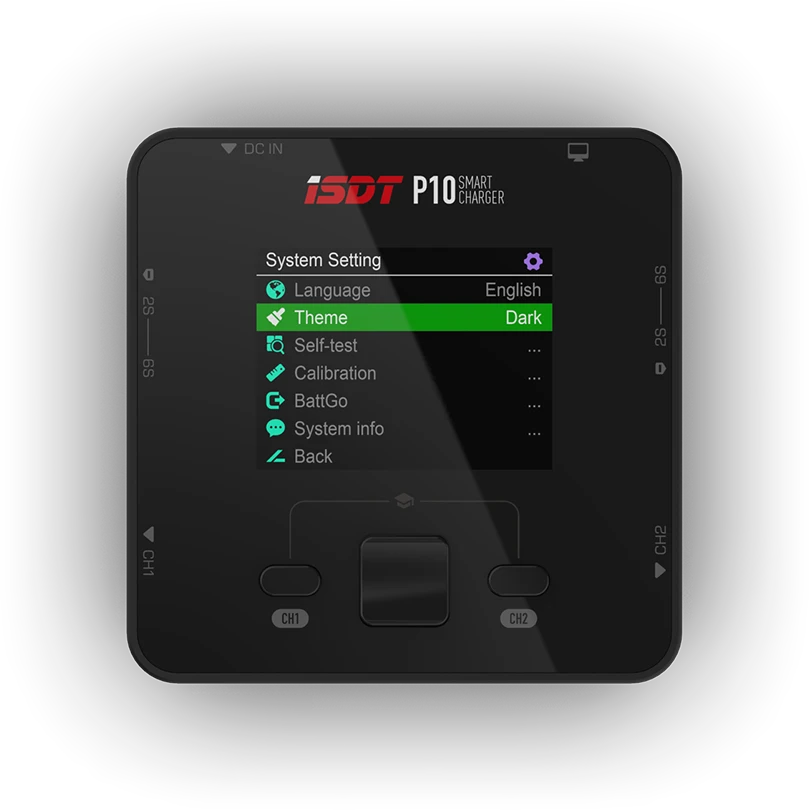

Dark Mode: Introducing the new dark mode feature with scOS 2.0. Suitable for low-light scenarios, the system adjusts the interface to a dark tone, reducing light damage to the user’s eyes while maintaining the iconic and comfortable charging display style.

Specifications:

• Model No: P10
• Input voltage: DC 10~30V
• Output voltage: DC 1~26.4V
• Max. input current: 20A
• Charging current: 0.2~10.0A*2
• Balance current: 0.5A/Cell Max
• Max. charging power: 250W*2
• Abnormal voltage alarm: Supported
• Incorrect cell count setting alarm: Supported
• Supported Quick-charge: LiFe, LiIon, LiPo, LiHv 1-6S, Pb 1-10S; NiMH, Cd 1-16S
• Working temperature: 0~40℃
• Storage temperature: -20℃~60℃
• Dimension: 90.5×90.5x47mm
• Weight: About 250g

Packaging Included: 1 x ISDT P10 Charger
