Junsi ICharger X8 Lilo/LiPo/Life/NiMH/NiCD DC Battery Charger 8S/30A/1100W

The iCharger X8 DC Battery Charger is a powerful and versatile device that supports a range of battery types and features advanced technology for efficient and safe charging. Here are some of the key features and specifications:

Features:

1. Utilizes advanced synchronous buck-boost DC/DC converter technology with high power, high current, and high-performance power conversion circuit. Supports up to 1100W of maximum charge power capacity and up to 30A of maximum charge/discharge current of a channel.

2. Supports 8s LiPo, Lilo, LiFe, LiHV, LTO, and NiZn batteries with a maximum 2A balance current. Utilizes unique balance calculation of internal resistance correction. Also supports 1-25s NiMH/NiCd batteries and 1-15s Pb batteries.

3. Includes digital-power mode with several protection features such as over-current protection, over-voltage protection, input under-voltage protection, input undercurrent protection, etc.

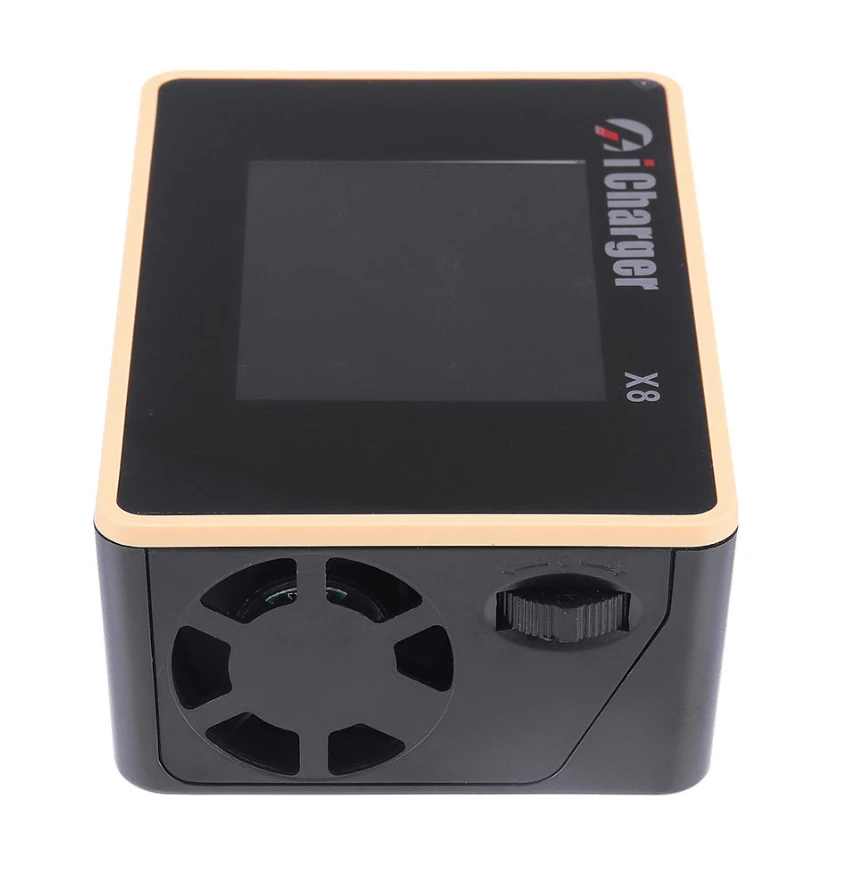

4. Equipped with intelligent fan control that adjusts the fan speed based on the internal temperature of the charger.

5. Features internal temperature protection that automatically reduces the output power when the internal temperature exceeds the power reduce temperature. The charger shuts down when the temperature exceeds the shut-down temperature.

6. Can save up to 32 parameter sets and supports data import/export to SD cards.

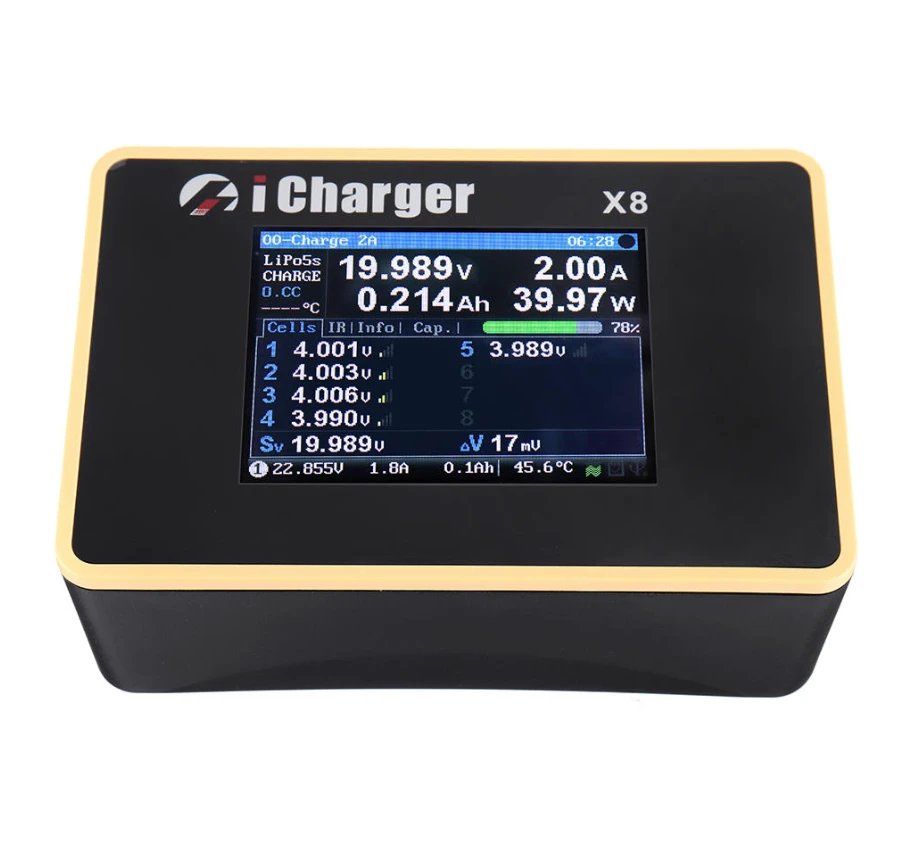

7. Comes with a 2.4″ IPS LCD screen that displays detailed information such as current, voltage, power, capacity, internal resistance, control status, time consumption, temperature, etc.

8. Offers multi-discharge features including self-discharge, regenerative to input discharge, and lithium battery extra expanding discharge.

9. Supports offline and online measurement for internal resistance of batteries. Can measure the internal resistance of the entire battery pack as well as each cell within the lithium battery.

10. Has protection for reversed polarity (input or output), input voltage/current, battery temperature, charging capacity, overrun time, maximum power, etc.

11. Supports software updates via USB port or SD card. Also supports the “Junsi Console” software that displays, plots, and analyzes the charge and discharge data.

Comes with a one-year manufacturer warranty handled by Buddy RC, a major iCharger distributor since 2009.

Specifications:

• Display: 2.4″ IPS LCD (320×240)
• Net weight: 200g
• Dimension: 97.5×64.5×37 ±0.5mm
• Input voltage range: 9—49VDC
• Maximum input current limit: <35A
• Maximum charge/discharge current: 30A
• Maximum charge power capacity: 1100W
• Maximum discharge power capacity: 50W
• Maximum regenerative discharge power capacity: 1100W
• Maximum extra discharge power capacity: 1000W @33.5V/30A
• Maximum current drain for balancing: >2.0A

Contents: 1x iCharger X8
