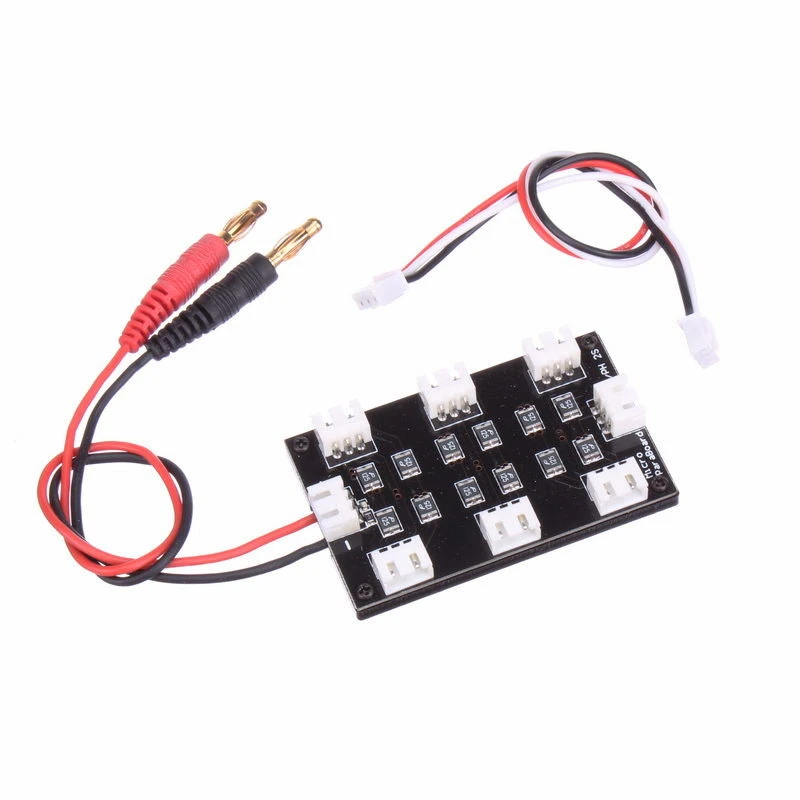

Micro ParaBoard – 2S XH For Trex 150

Buddy RC is the original designer of ParaBoard and Micro ParaBoard.
This 2S XH micro ParaBoard is designed for 2S LiPo batteries with XH (also known as JST-XH, Align type) balance connectors. You can use the board to charge up six LiPo batteries simultaneously to save charging time.
This board can be used for Trex 150 batteries and other batteries with 2S XH balance lead.

The circuit is protected by self-resettable polyfuses and your batteries will be protected in cases of wrong connection. Please note that these fuses may lead a higher IR readout of your batteries, but will not affect the cutoff voltage.

The melting current of each resettable fuse is 1.25A. The maximum total charge current equals 1.25A multiplied by the number of batteries.

Please read the product manual in the package to set up charge current.
