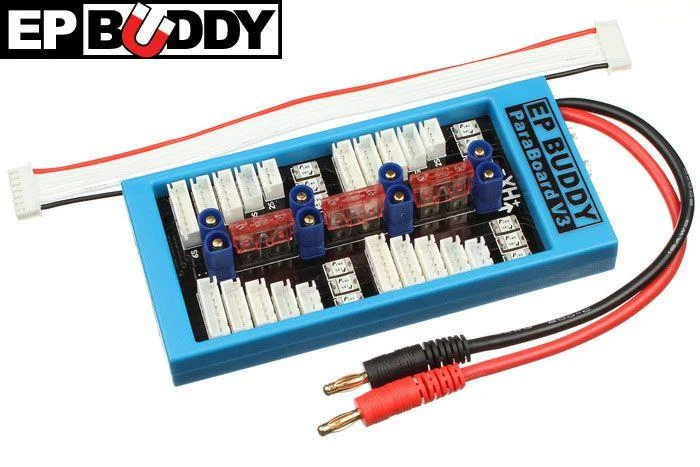

Safe 40A ParaBoard V3 – XH With EC3

This is the latest version of ParaBoard with self-resettable fuse protection. The PCB board is made of three ounce copper and the main circuit supports up to 40A current. All the balance ports are protected by resettable fuses (also known as polyfuse), and the main circuit is protected by common car fuses that are easily available at local hardware stores.

ParaBoard – XH can be used for batteries with JST-XH balance connectors, such as Align, Blue, E-flight, Turnigy, and our Glacier LiPo packs.

This device is to be used with a balance charger to simultaneously charge multiple lithium batteries in parallel. By this method you can significantly save time on battery charge process.

Principles and practices of parallel charging lithium batteries have been well discussed in the forums on RC Groups. This method has been proved to be a safe and efficient way to charge LiPo batteries, and is being widely accepted by more and more RC hobbiests all over the world.

Parallel charge can save your time significantly. If you charge four batteries at the same time, the charge current is four times of that you used for a single pack, and you need only approximately 1/4 of the charge time to charge every battery separately. Similarly, if you charge six batteries at the same time, the charge current is six times and time is only 1/6.

Multiple safe ParaBoards (V3) can be connected directly in order to charge more than four batteries at a time.

ParaBoard XH can be used for the following brands of LiPo batteries that have JST-XH balance connectors:

ABF
ACE
Air Thunder
Align
Beyond Power
Blue Batteries
BP
Common Sense RC V1 (reversed polarity)
Common Sense RC V2
DN Power (reversed polarity)
Dynam
EC Power
E-Flight
eFuel
Electric Power
Electrifly
Energy EC
EP Buddy
Esky
E-Watts
Exceed RC Fusion
Flightmax
Fully Max
Gadex
GE Power
G-Force
Glacier
Grayson Power
Hextronic
Hi Models
Hobby City
Hobby Loong
Hurricane Flight Systems
HXT
Imax
Kong Power (Old version)
Lightning Power (2S-5S)
Loong Max
MaxForce
Mega Power
Mojo
Mystery
Nine Eagles
Park Zone
PolyNoOne
PowerEdge
PowerSource
Precision Aerobatics
Protek
Reedy Power
RFI
Rhino
SMC
Super Tigre
Tenergy (old version, reversed polarity)
Top Racing
Tower Hobbies
Trinity
Turborix
Turnigy
Vampower (New version)
Venom
WOW RC
X-Caliber
Xtreme
Zippy
