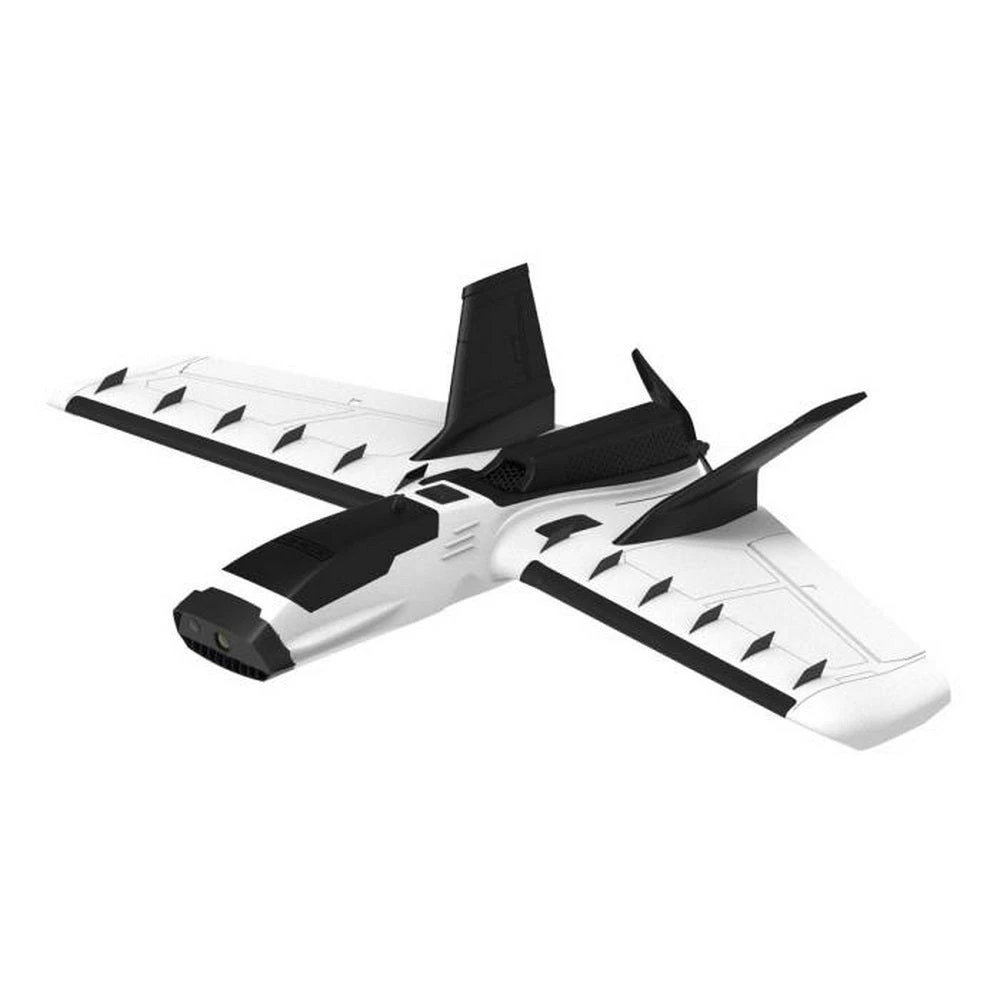

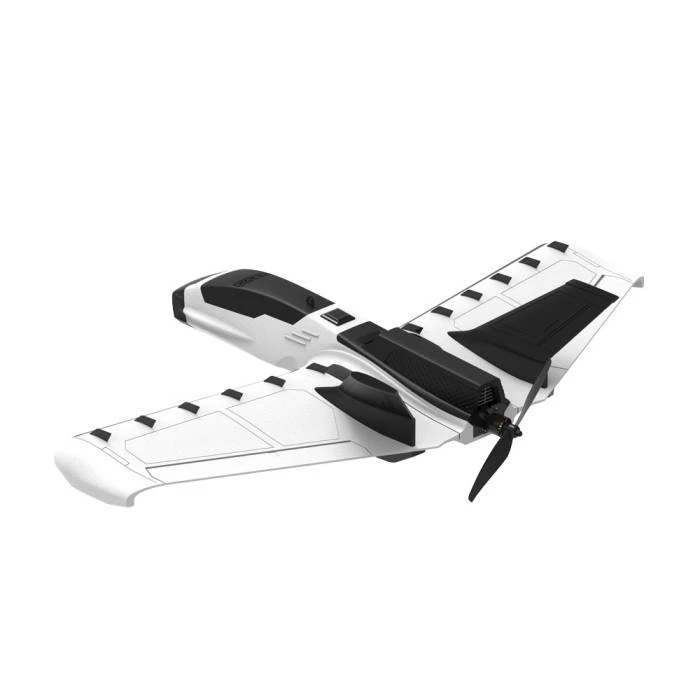

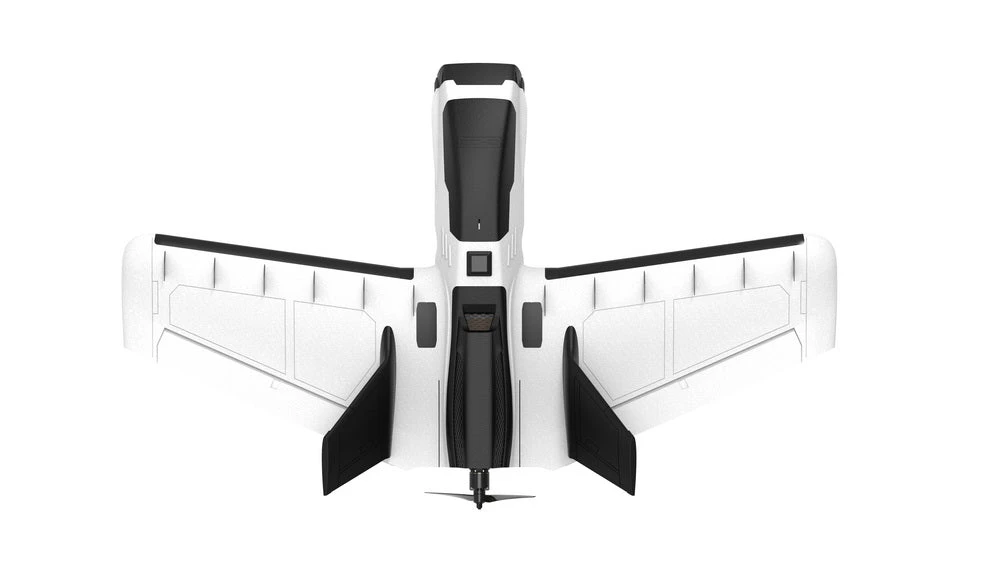

ZOHD Dart XL Extreme Enhanced Unassembled Kit

Introducing the ZOHD Dart XL Extreme Enhanced KIT – the latest addition to ZOHD’s line of high-quality FPV planes! Building upon the success of the Dart V2, the Dart XL Extreme has been upgraded with new features to work seamlessly with modern flight controllers, high-power video transmitters, and long-range systems. Despite its small size and lightweight construction, the Dart XL Extreme is capable of keeping up with larger planes thanks to the top-of-the-line electronics included in the package, providing you with the ultimate FPV experience. Order your kit today and take your FPV game to the next level!

Features:

• Lightweight airframe with detachable wings and vertical stabilizers for easy portability.
• ZOHD’s new BEPP material provides excellent crash resistance and is 100% biodegradable.
• Composite hard nose protects your camera during flight.
• Embedded VTX/RX bays provide excellent air flow and are isolated from RF interference.
• Multi-camera nose compatible with a wide variety of cameras, including Runcam HD, 2, 3S, Swift, Split, GoPro H4-5-6-7, Session, and more!
• Impact-resistant protection cover for main wings and landing skids.

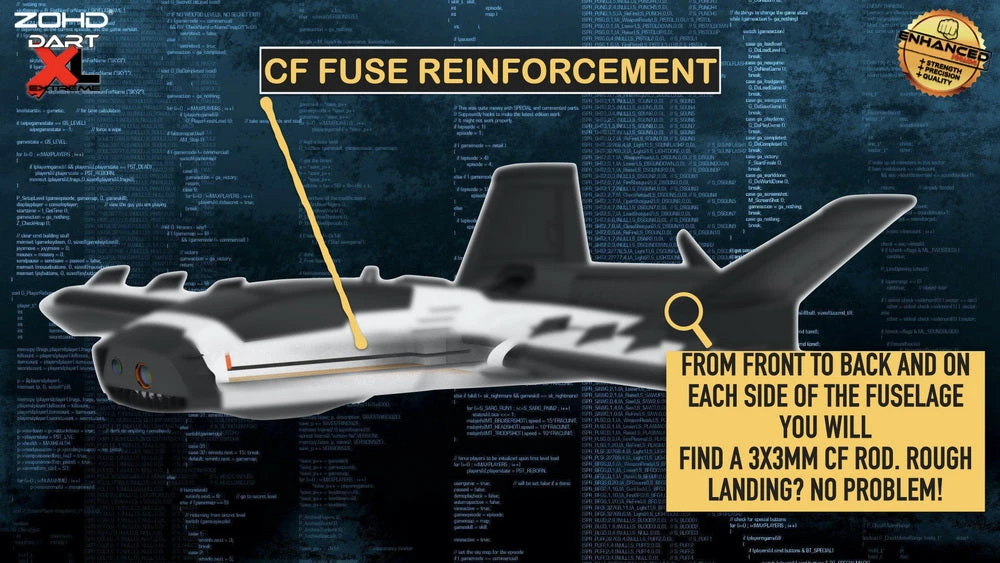

• Enhanced version features a stronger, more durable motor mount and built-in carbon fiber rod inside the fuselage for added strength and rigidity.

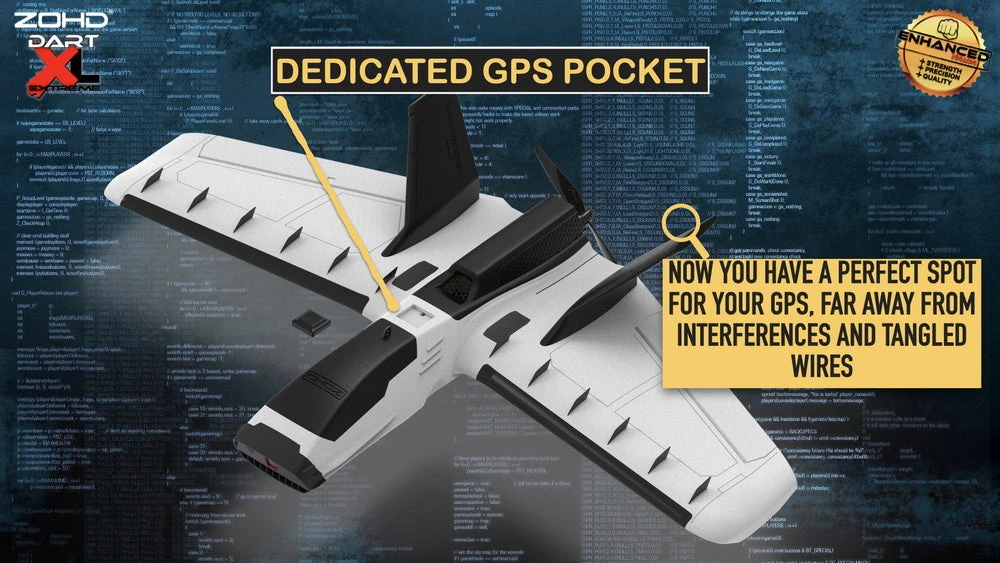

• GPS bay and cover included for expanded functionality.

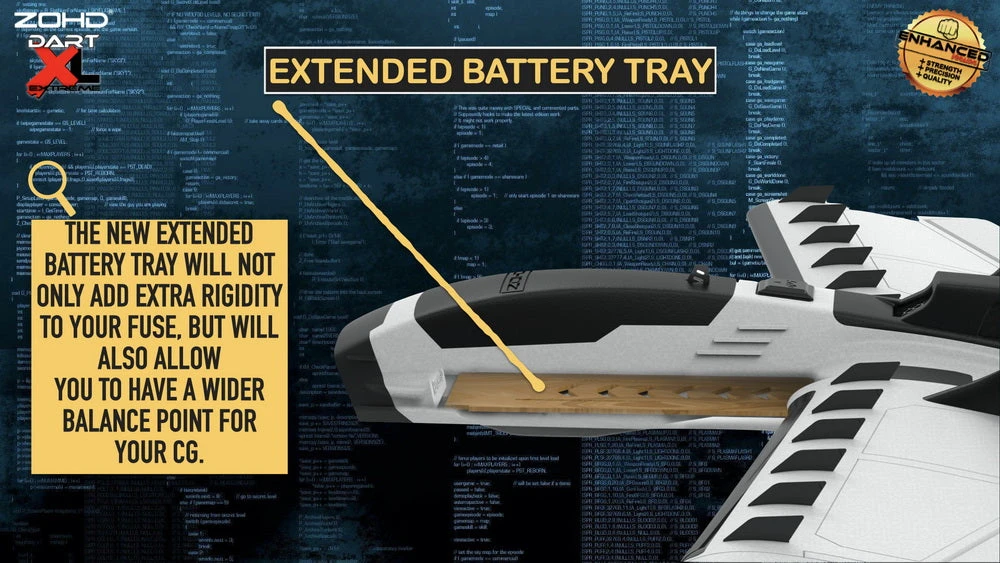

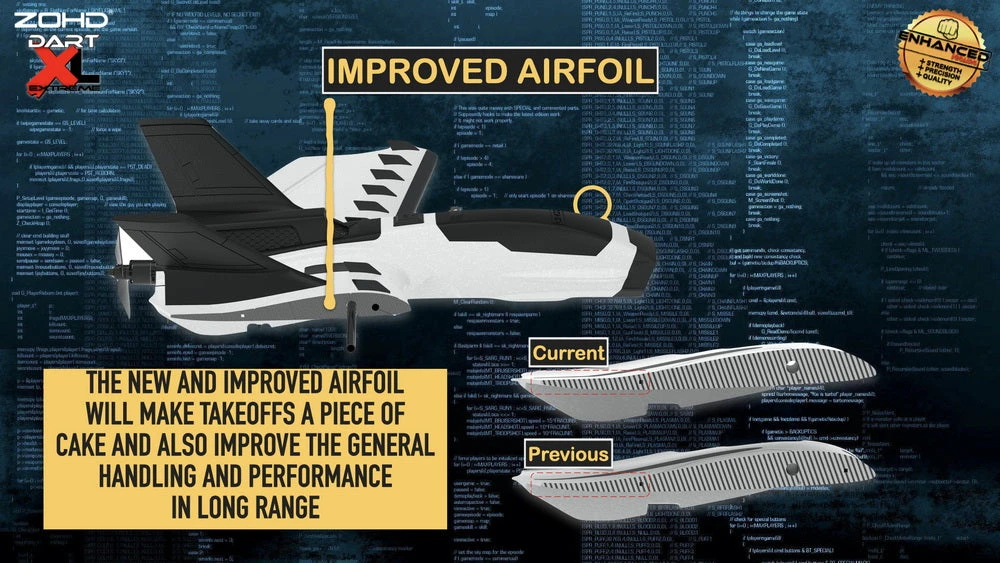

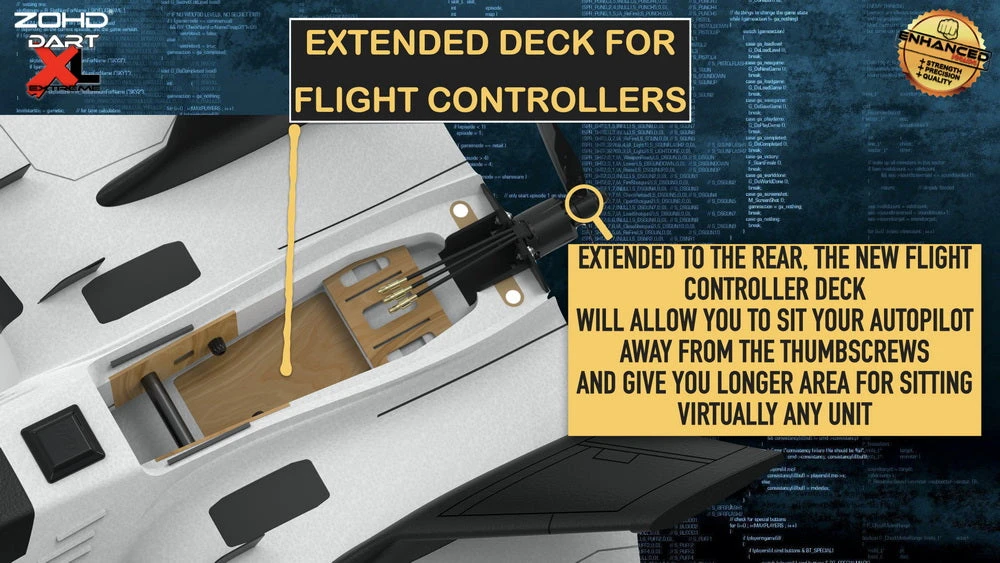

• Optimized airfoil and extended dock for flight controller.

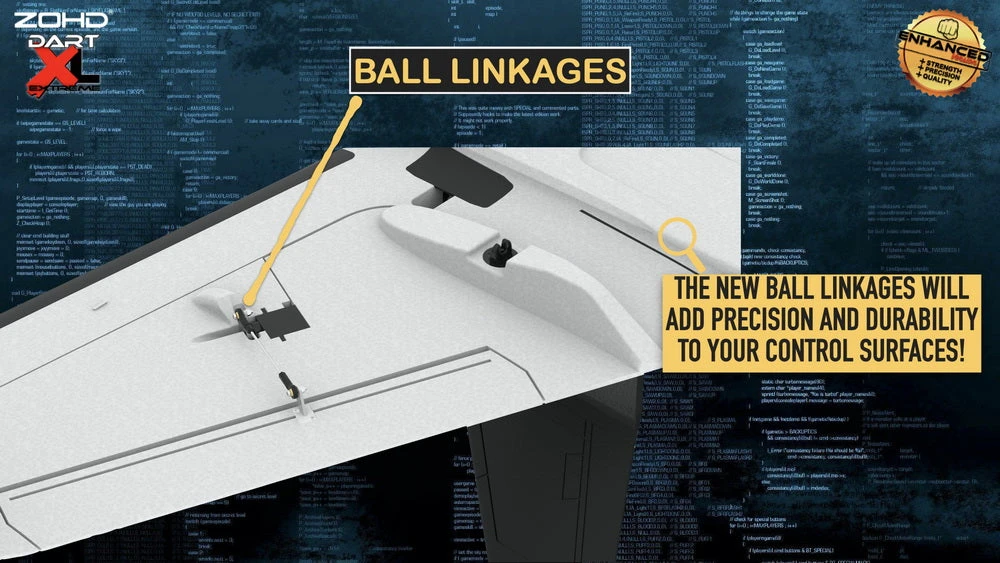

• Extra ball linkage included in the package.

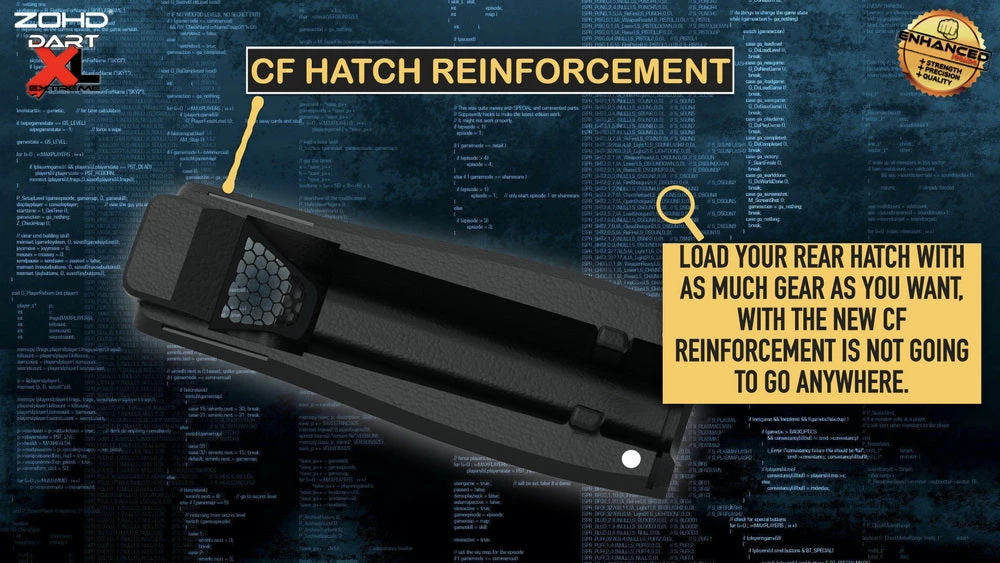

• Built-in carbon fiber strip inside rear hatch for added reinforcement.

Specifications:

• Material: Biodegradable BEPP
• Wingspan: 1000mm (39.37”)
• Length: 596mm (23.4”)
• Space for Stabilizer/Gyro: Yes
• Wing area: 19.8dm2
• Wing load: 60.6g/dm2 (Max.)
• Recommended Max. Flying weight: 1200g
• Flying speed: 25-100+km/h
• Max. Flying time: 40 minutes (with recommended battery)
• Recommended Battery: 4S 3300mAh
• RC Transmitter, Receiver, Motor, ESC, Servos, Battery, and FPV Gear NOT included

Recommended Electronics (Not Included):

• Motor: 2216-1300KV
• ESC: 30A w/5V 3A BEC
• Servos: 9g Metal Gear
• Prop: 9×4.5
• Recommended Battery: 4S 3300mAh
